Chapter 3 Page no. 220
Tool-Glossary.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Tools Glossary
1. MECHANICAL TOOLS
1-1. Standard Mechanical Tools

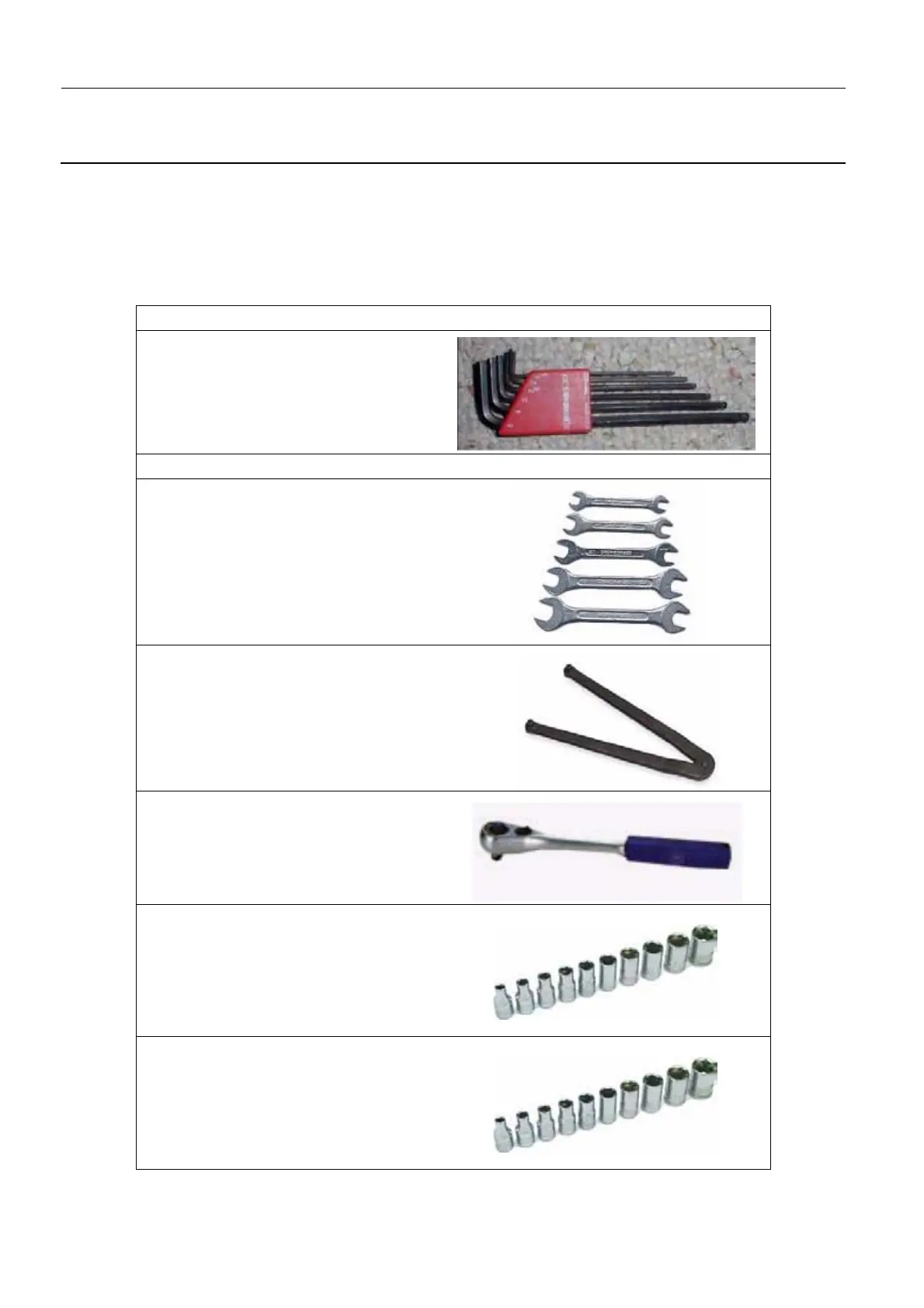

The following table summarizes all of the standard mechanical tools that must exist in a Standard Tool
Box. These tools are required for every site visit in order to perform installation and routine maintenance
of the Senographe system.
Standard Mechanical Tools
Set of allen metric wrenches:
1.5 mm - 2 mm - 2.5 mm - 3 mm - 4 mm -
5 mm - 5.5 mm - 6 mm - 8 mm
Set of imperial allen wrenches including the
size 3/32"
American wrench 3/16"
Set of metric open-ended wrenches:
5.5 mm - 7 mm - 8 mm - 13 mm - 17 mm
Adjustable pin wrench:
Ratchet handle (1/4" Square Drive)
10 Piece Metric Standard Hex Socket Set
(1/4" Square Drive) : 4 mm, 5 mm, 6 mm,
7 mm, 8 mm, 9 mm, 10 mm,11 mm,
12 mm, 13 mm)
10 Piece SEA Standard Hex Socket Set
(1/4" Square Drive) : 5/32", 3/16", 7/32", 1/
4", 9/32",5/16", 11/32", 3/8", 7/16", 1/2")
