GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A065 - Trackball Configuration
Page no. 787 Chapter 7
JC-ELE-A-065.fm
Job Card ELE A065 - Trackball Configuration Chapter 7
1SUPPLIES
ADS Trackball Kit
2 APPLICABILITY
The trackball is supplied with the V1 Control Station, which is no longer being produced. V2/V3/V4 Con-
trol Stations are supplied with a mouse and with the trackball as an option. This Job Card is only applica-
ble if you have chosen to use the optional trackball, and if the trackball does not have a supplier number
of the format X-GEUSB-Axxxx.
3TOOLS
None
4 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 10 minutes
5 SAFETY PRECAUTIONS
None
6 PRE-REQUISITES
It is recommended that you undertake the trackball configuration in a quiet environment. Since the
Senographe system makes some considerable noise, you should ideally unplug the trackball from the
Senographe system and connect it to your laptop PC in a quiet area.
7 PROCEDURE - TRACKBALL CONFIGURATION
7-1 Trackball Configuration

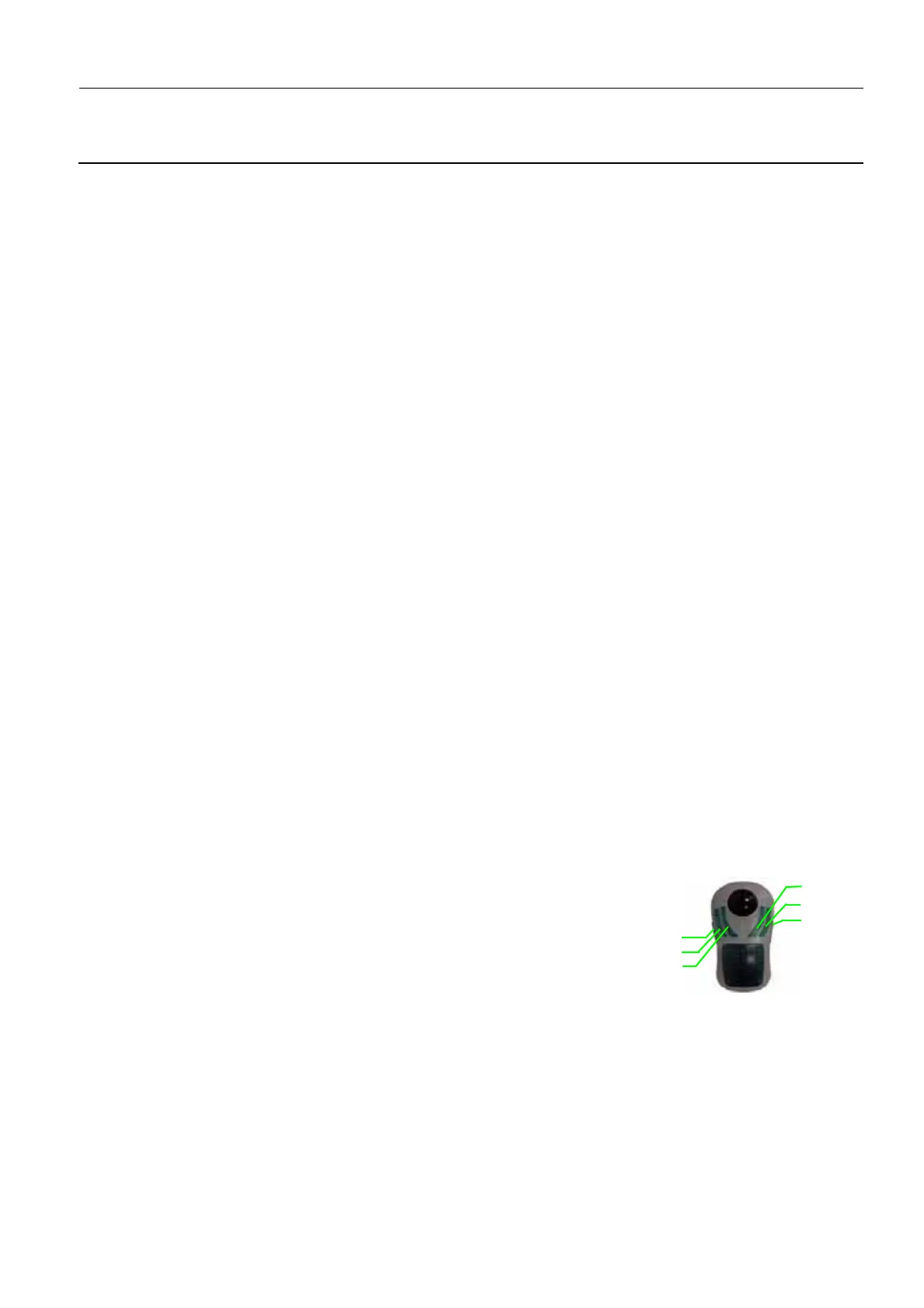

• Reference numbers used to identify the buttons of the trackball are
shown in the illustration.
• Trackballs supplied on a new system are correctly configured in
the factory.
• Replacement trackballs are supplied as received from the manu-
facturer, and must be configured.
• Before use, check that the trackball buttons are set to be equiva-
lent to mouse buttons, as follows:
1. Check that buttons 1 and 6 are set up for right click.
2. Check that buttons 2 and 5 are set up for middle click.
3. Check that buttons 3 and 4 are set up for left click.
A suggested check procedure is given in the Trackball Setup Checks on page 789.
• If necessary, use the trackball program mode to configure the buttons as described in the Trackball
Button Setup Procedures on page 788
button 1
button 2
button 3
button 4
button 5
button 6
