GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A224 - Gas Spring for Rotation Worm Gear
Page no. 1235 Chapter 9
JC-DR-A-224.fm
Job Card D/R A224 - Gas Spring for Rotation Worm Gear Chapter 9
1SUPPLIES
Gas Spring for Rotation Worm Gear-100N
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 60 minutes
4 SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
5 PREREQUISITES
• Remove the front covers (refer to Job Card PHY A044 -
Remove/Reinstall Gantry Covers on page 523).

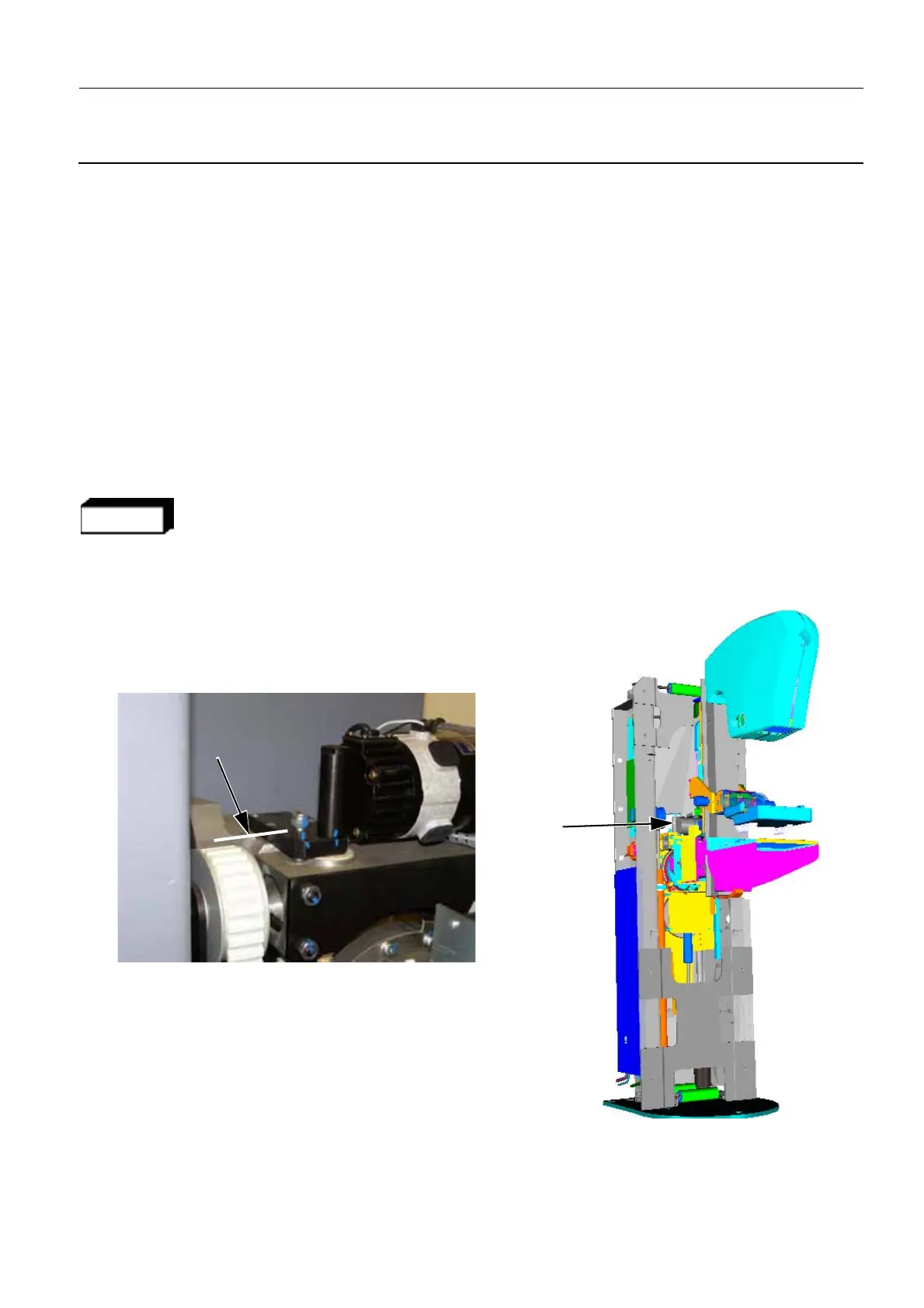

• Raise the arm until the mounting plate of the Gas Spring
rises above the pulley of lift belt.
• Rotate the arm to about 45 degrees clockwise from verti-
cal for good access to the housing of the Gas Spring (1)
• Switch off the Gantry power.
1
To Next Page
