GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Central Listing
Page no. 297 Chapter 3
Indicators and Switches.fm

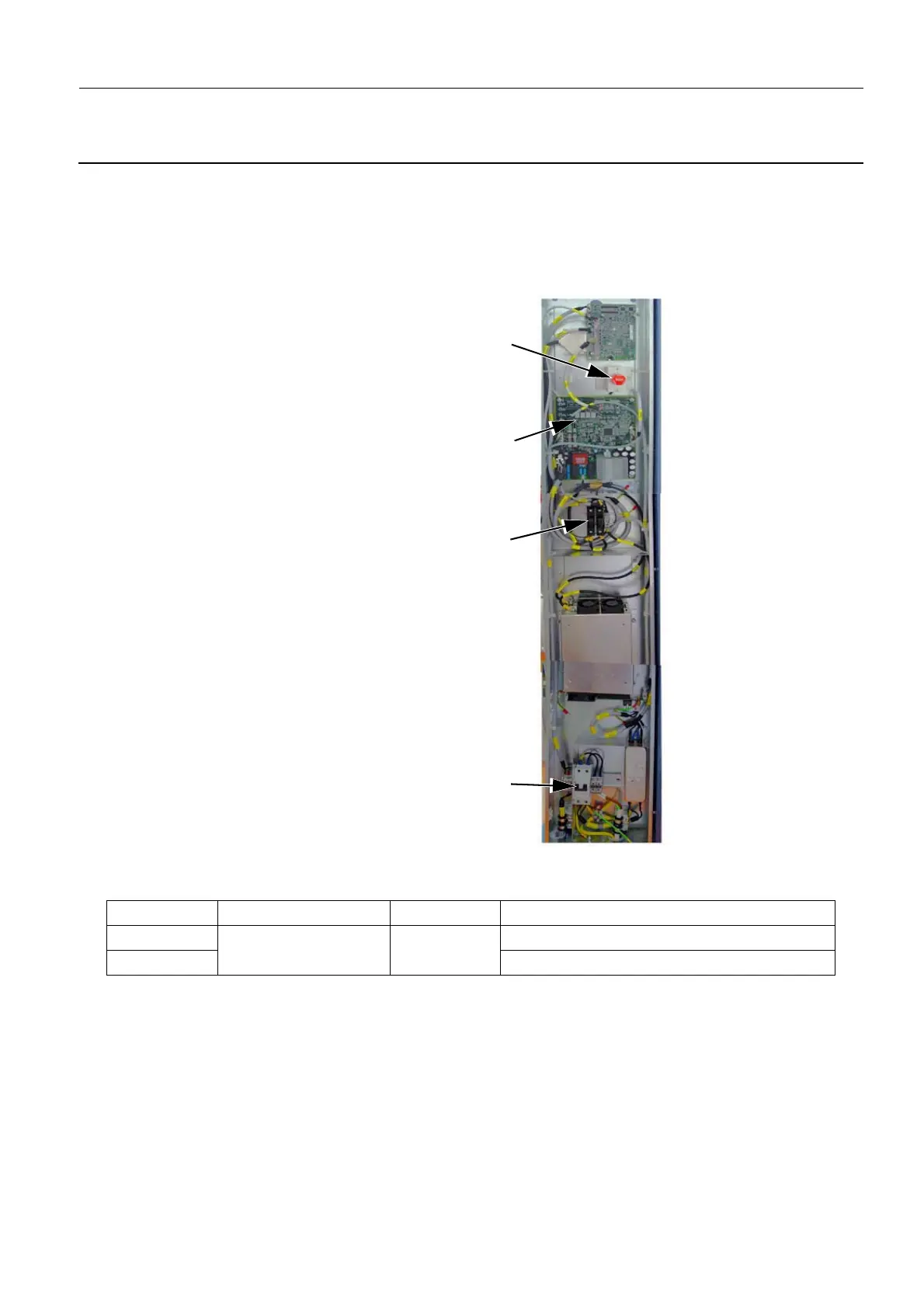

5. GANTRY MPCB SWITCHES AND FUSES
5-1. MPCB Fuses
Fuse Specification PN Function
F1 600 Vac, 20 A, Fast 2387747
F2
PDU Board PL101
(for fuses, etc., see PDU Board
PL101 on page 290).
Stop Motion button - Left.
(one either side of column.
F1/F2 Fuse, 600 Vac, 20 A, Fast
Circuit Breaker 10 A
