Chapter 3 Page no. 290
Indicators and Switches.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Central Listing

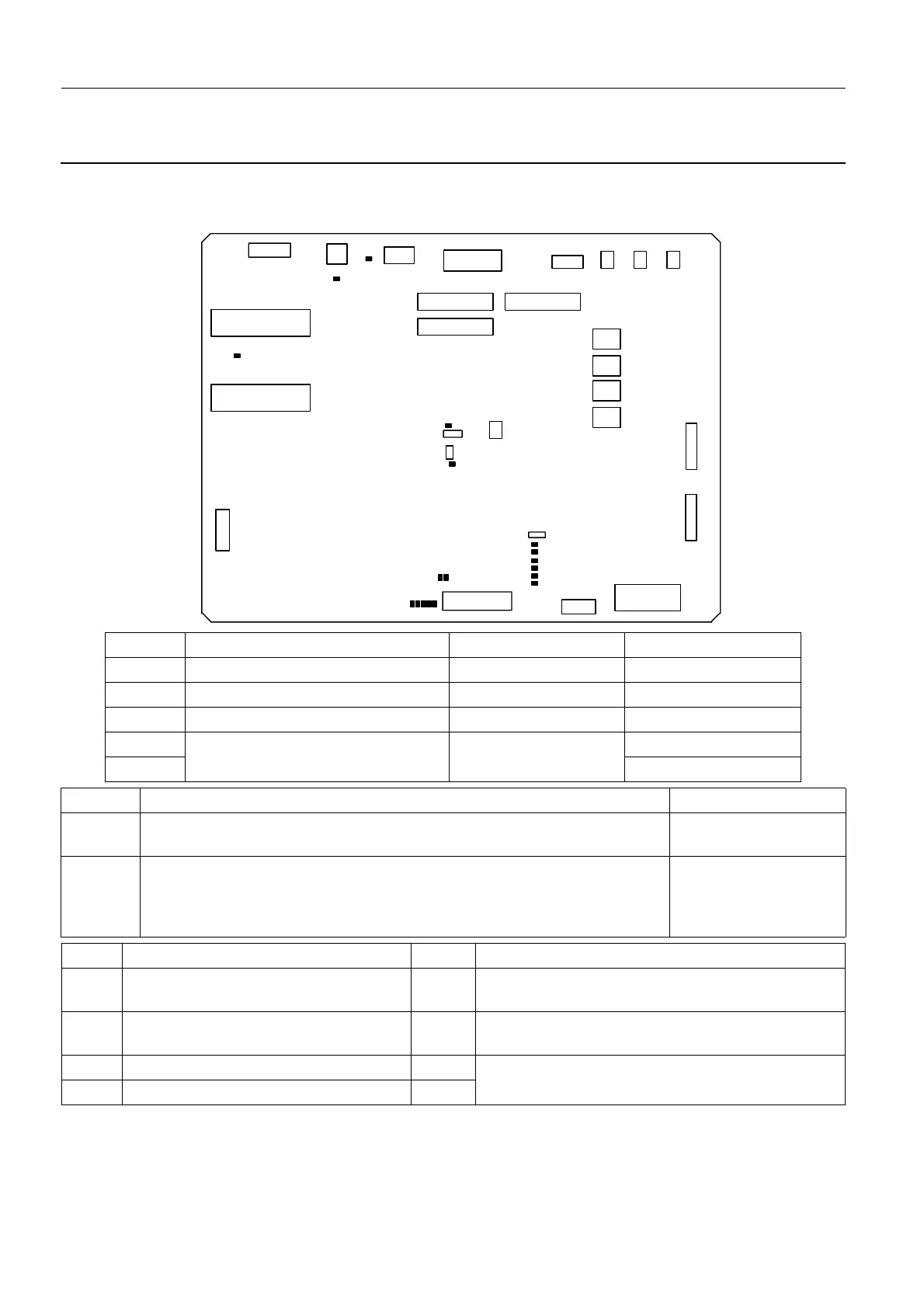

4-3. PDU Board PL101
Fuse Specification PN Protects
F1 250 Vac, 6.25 A, Delay 46-170021P60
F3 250 Vac, 0.5A, Delay 46-170021P31
F4 250 Vac, 2A, Delay 46-170021P30
F5 250 Vac, 125 mA, Delay 5344386-2
F6
Jumper Function Position
PRGM Used to program the PDU board during manufacturing. Closed to program
the PDU board. Open for normal PDU board operation.
This jumper must
always be open.
J22 Used to turn on/off 48 V when the PDU board is in programming mode. Bot-
tom two pins closed turn 48 V off. Top two pins closed turn 48 V on.
Open enables normal PDU board operation, where the 48 V is controlled by
the Senographe system.
This jumper must
always be open.
LED Function Color Behavior
DS1 DMR On Green ON when the Generator is ON
OFF when the Generator is OFF
DS2 48 V Green ON when 48 V DC supply voltage is OK
OFF when 48 V DC supply voltage is defective
DS3 Minus sign used for error codes Red Sometimes ON when reporting certain error codes.
DS4 Minus sign used for error codes Red
• Board-PDU PL101; see component index page 158 .
DS1
J8
DS2
DS21‐20‐19‐17‐16
DS25
DS24
DS5
DS6
DS7
DS8
J9
J4
J2
J5
J7
J6
S3 S2 S1
F3
F4
F1
F6
F5
S4
J22
J1
J11
J3
J10
DS14‐13‐11‐10‐12‐9
DS15,18
DS26
PRGM
