GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A202 - Upper Optical Fork
Page no. 1167 Chapter 9
JC-DR-A-202.fm
Job Card D/R A202 - Upper Optical Fork Chapter 9
1SUPPLIES
Upper Optical Fork
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 25 minutes
4 SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
5 PREREQUISITES

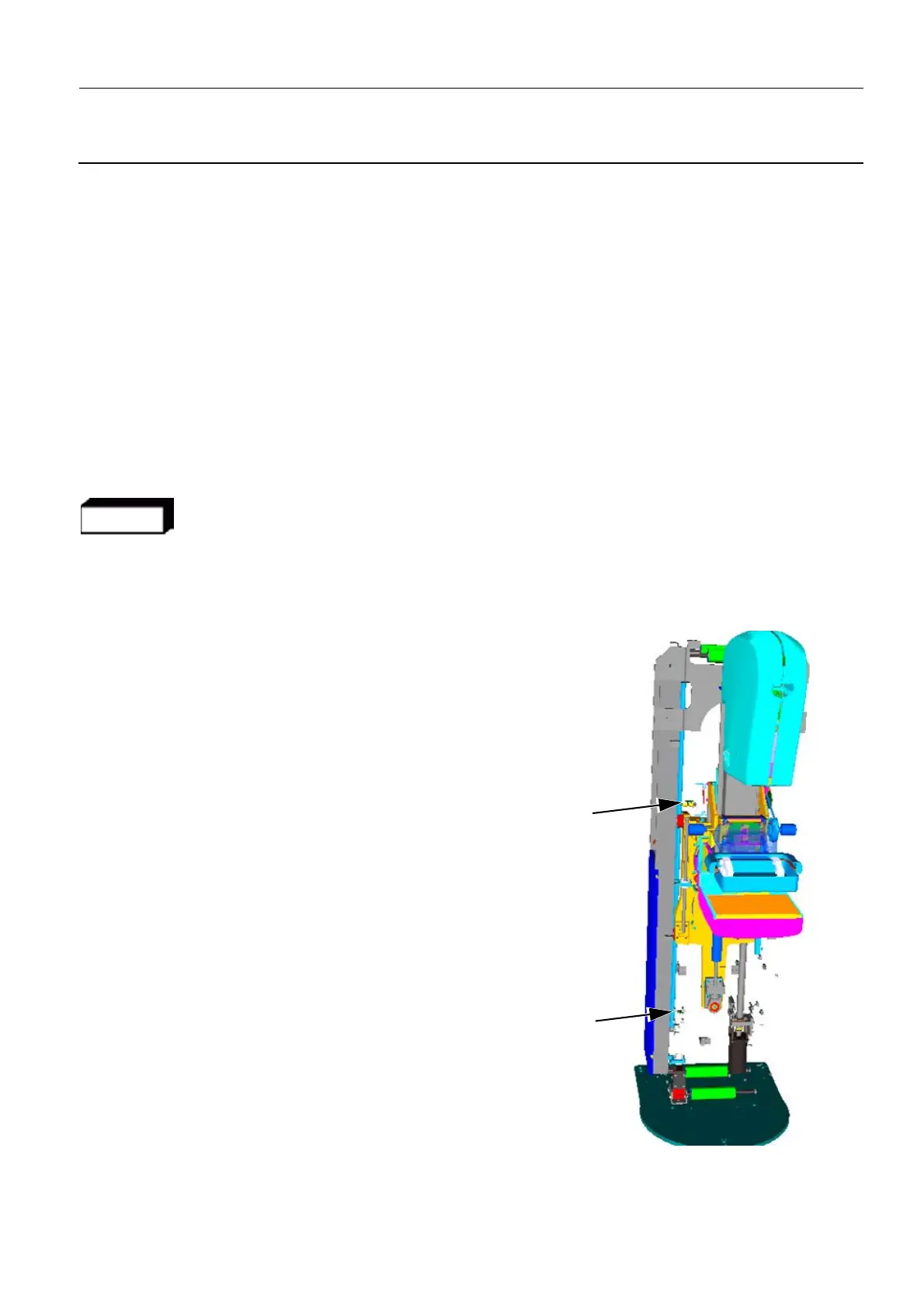

• Raise the arm to an intermediate position to facilitate the
access to both upper (1) and lower (2) optical forks.
• Switch off the system power.
• Remove the Front cover and the right column cover (Refer to
Job Card PHY A044 - Remove/Reinstall Gantry Covers on
page 523.
• Loosen and remove the Gantry curtain (refer to Job Card D/R
A208 - Gantry Curtains on page 1193).
1
2
