Chapter 9 Page no. 1166
JC-DR-A-201.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A201 - Lift Board
7-2 Check Gantry Readout Cable Position
To ensure that there is no EMC interference between the Lift Board and the Gantry Readout ribbon
cable, ensure that the Gantry Readout ribbon cable is correctly positioned. Refer to Check Gantry Read-
out Cable Position on page 1216 in Job Card D/R A212 - Gantry Readout.
7-3 Calibrations
• Check that footswitches are working properly.
• Check if the readability of Gantry Readout text is acceptable. If needed, adjust the Gantry Readout
Potentiometer on the Lift board until the text brightness/contrast is acceptable. For adjustment use a
very small flat screwdriver (max. 1 mm wide).
• Carry out the calibration procedure: Job Card CAL A031 - Lift Calibration on page 1687.

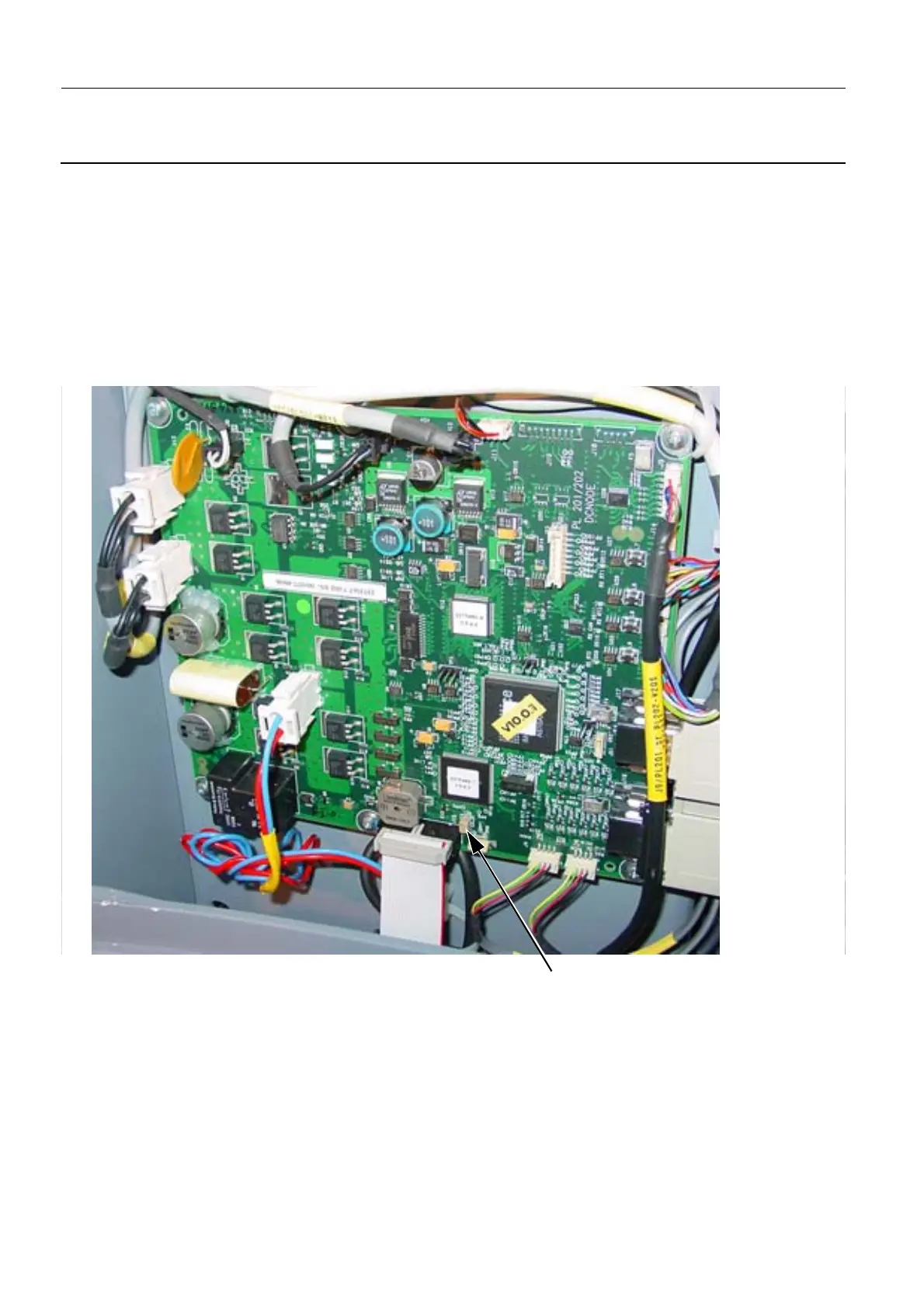

Gantry Readout Potentiometer
