GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A265 - Tilt Motor and Drive Assembly
Page no. 1361 Chapter 9
JC-DR-A-265.fm
Job Card D/R A265 - Tilt Motor and Drive Assembly Chapter 9
1SUPPLIES
Entire Tilt Motor and Tilt Drive Assembly with Bearing (2345905)
Or separately, as required:
• Motor-Tilt + W404 (2345929)
• Tilt Drive Assembly (2392469)
• Bearing-Tilt Drive (99033678)
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 2 hours
4 SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
5 PREREQUISITES

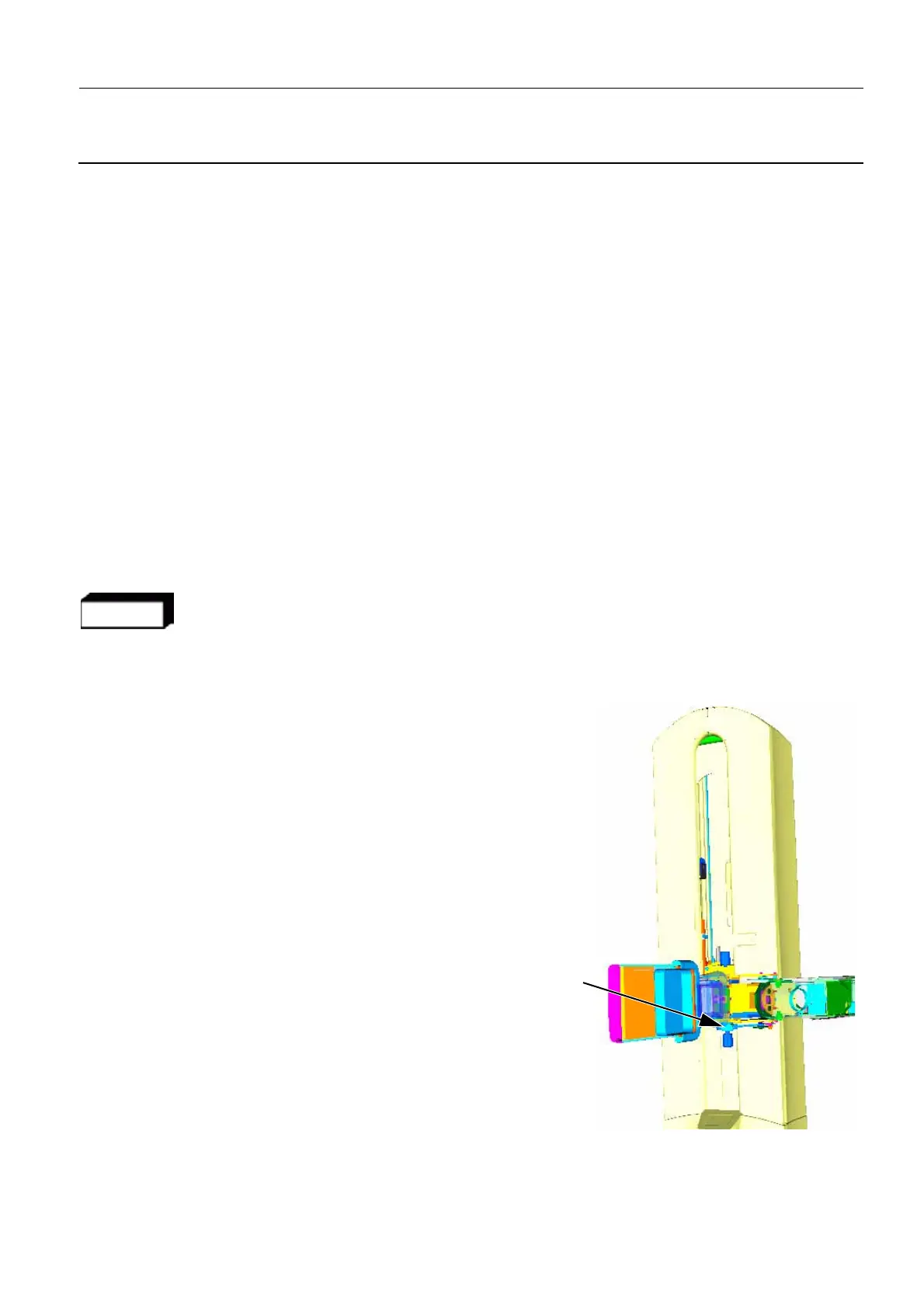

• Rotate the arm to 90° for access to the Tilt Motor (1).
• Switch off the Gantry power.
• Remove the tube cover (refer to Job Card PHY A044 -
Remove/Reinstall Gantry Covers on page 523).
