GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A206A - Lift Gas Spring
Page no. 1185 Chapter 9
JC-DR-A-206.fm

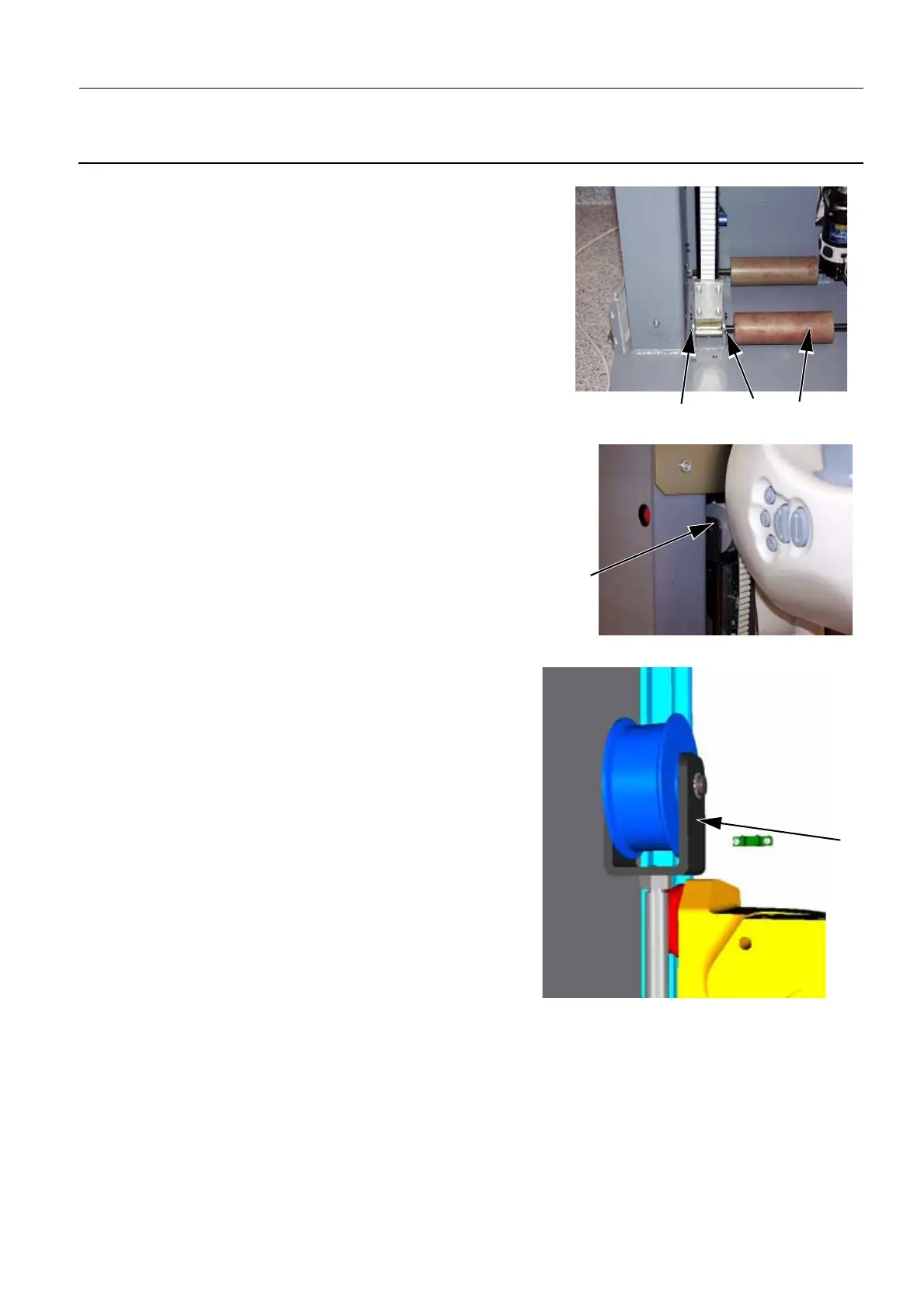

5. Remove the gas spring lower shaft:
- Remove the roller (4).
- Remove the pulley shaft (5).
- Remove the gas spring shaft (6).
6. Remove the belt, then pull the gas spring forward. Unscrew
it by turning it clockwise. The arm cover may be an obstacle
when tilting the gas spring for removal (7).
7. Remove the U-fork (8) from the top of the gas spring
(10 mm open-ended wrench).
564
7
8
