Chapter 9 Page no. 1190
JC-DR-A-207.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A207 - Lift Belt
6 PROCEDURE
6-1 Disassembly of the Lift Belt

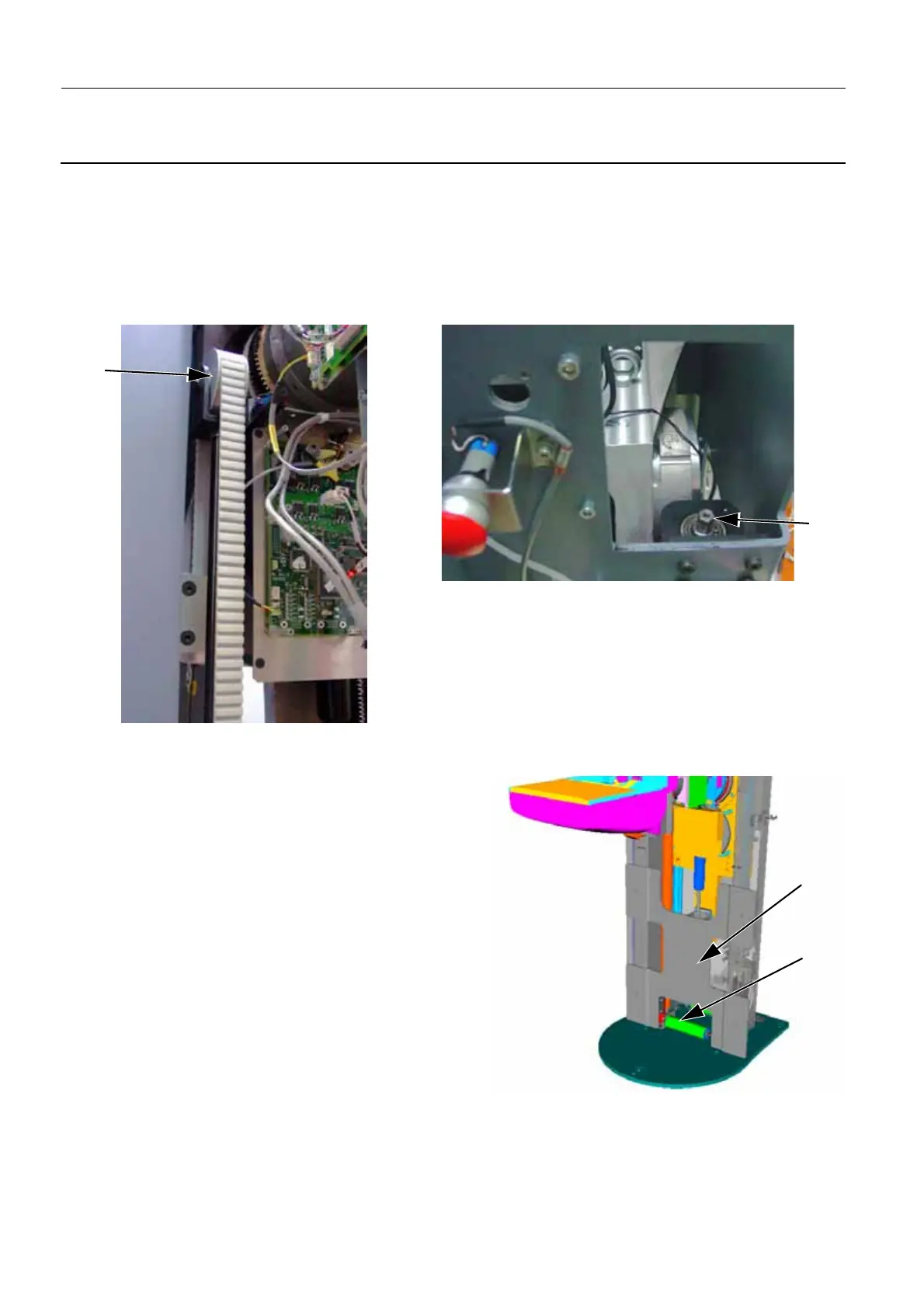

1. Continue to raise the belt pulley (2) manually (raise the arm) until the lift belt is loosened
Access the endless screw (3) on the top right side of the Gantry, use a ratchet handle (13 mm hex
socket) and turn clockwise.
2. Release the four bolts securing the lower X plate (4)
(10 mm open-ended wrench).
3. Remove the curtain roller (5).
2
3
UPPER LEFT SIDE - FRONT VIEW
UPPER RIGHT SIDE - LATERAL VIEW
4
5
To Next Page
