Chapter 9 Page no. 1248
JC-DR-A-229.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A229 - Rotation Brake
6 PROCEDURE

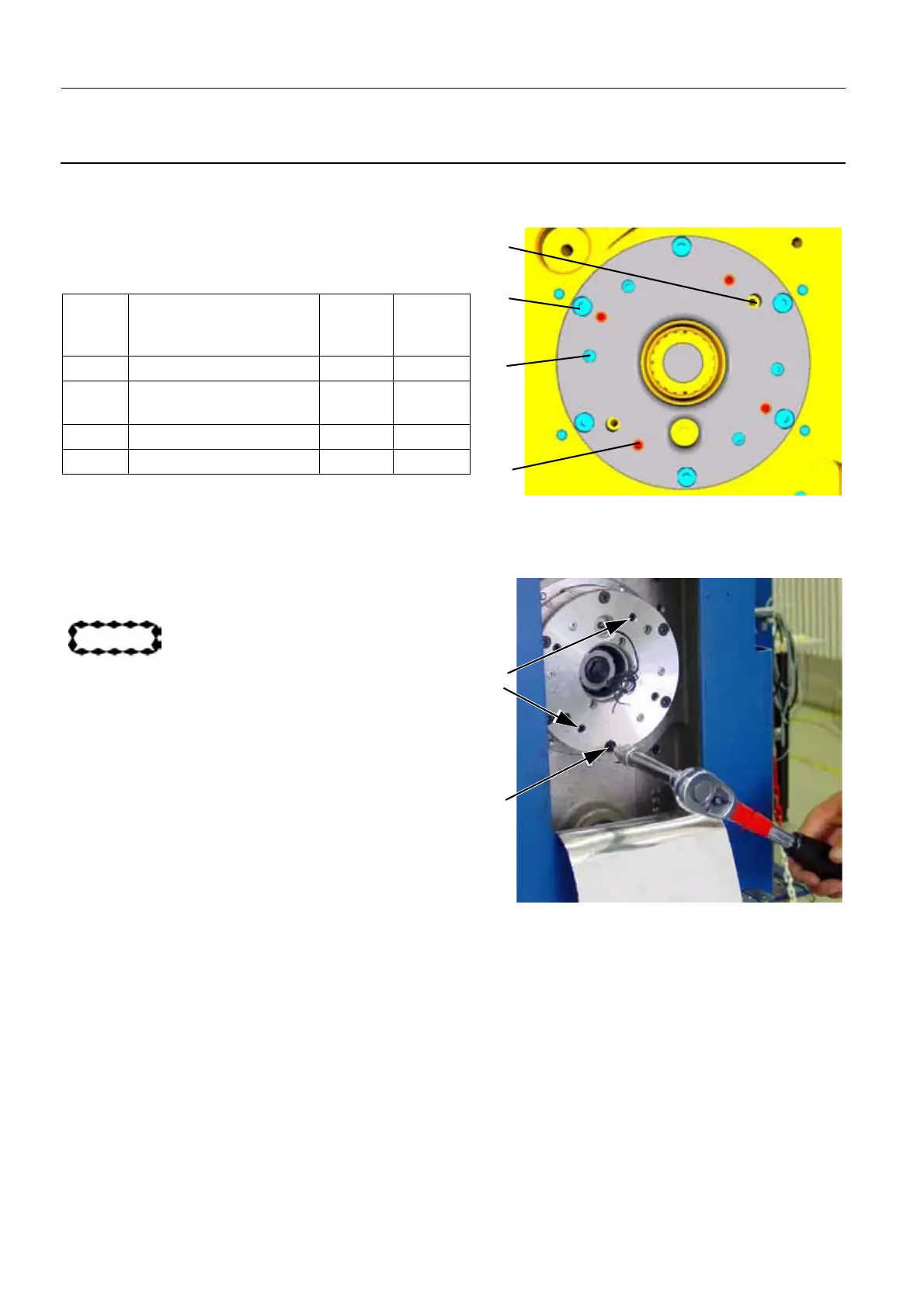

This list of screws in the following table help reading
the procedure:
6-1 Disassembly of the Rotation Brake
1. Insert and tighten the two transportation screws (2)
(4 mm allen wrench).
CAUTION
Do not dismount the brake without the
transportation screws in place and tight-
ened.
2. Disconnect the Brake cable (W219) from the Rota-
tion Board (connector J6).
3. Release the six screws (3) securing the Brake
holder plate (5 mm allen wrench).
Screw Name How
many
Allen
Wrench
(mm)
A Transportation Screws 2 4
B Brake Holder Plate
Screws
65
C Pulling Screws 4 4
D Pushing Screws 4 5
A
B
C
D
2
3
To Next Page
