Chapter 9 Page no. 1282
JC-DR-A-233.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A233 - Lift Screw Assembly Top Brake

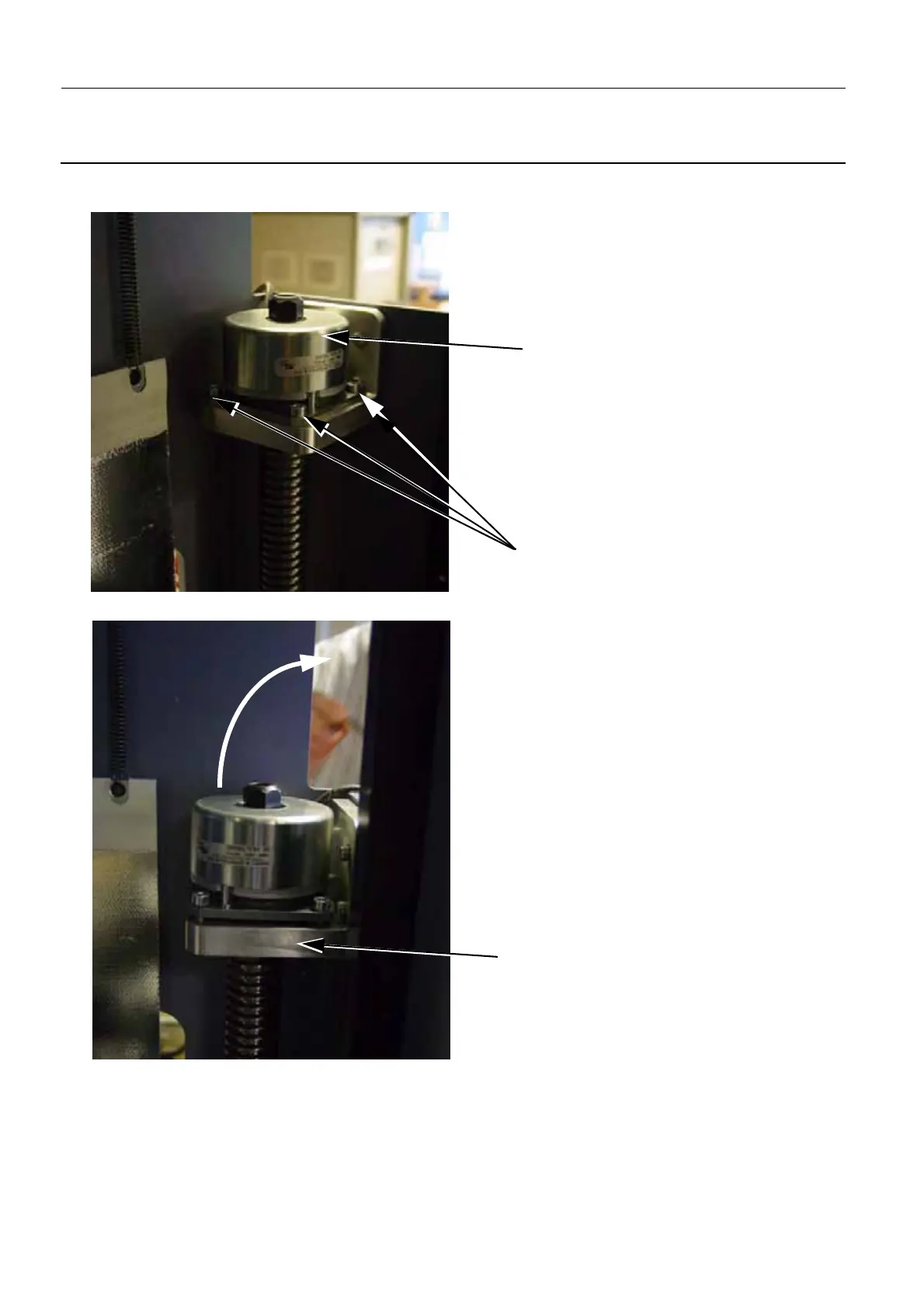

3. Release and carefully remove the four allen screws (1) that secure the Lift screw Assembly Top
Brake (2) to the bracket (4 mm allen wrench).
4. Carefully remove the Lift Screw Assembly Top Brake (2) from the bracket (3).
1
2
3
