GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A246 - Manual Compression Brake
Page no. 1305 Chapter 9
JC-DR-A-246.fm

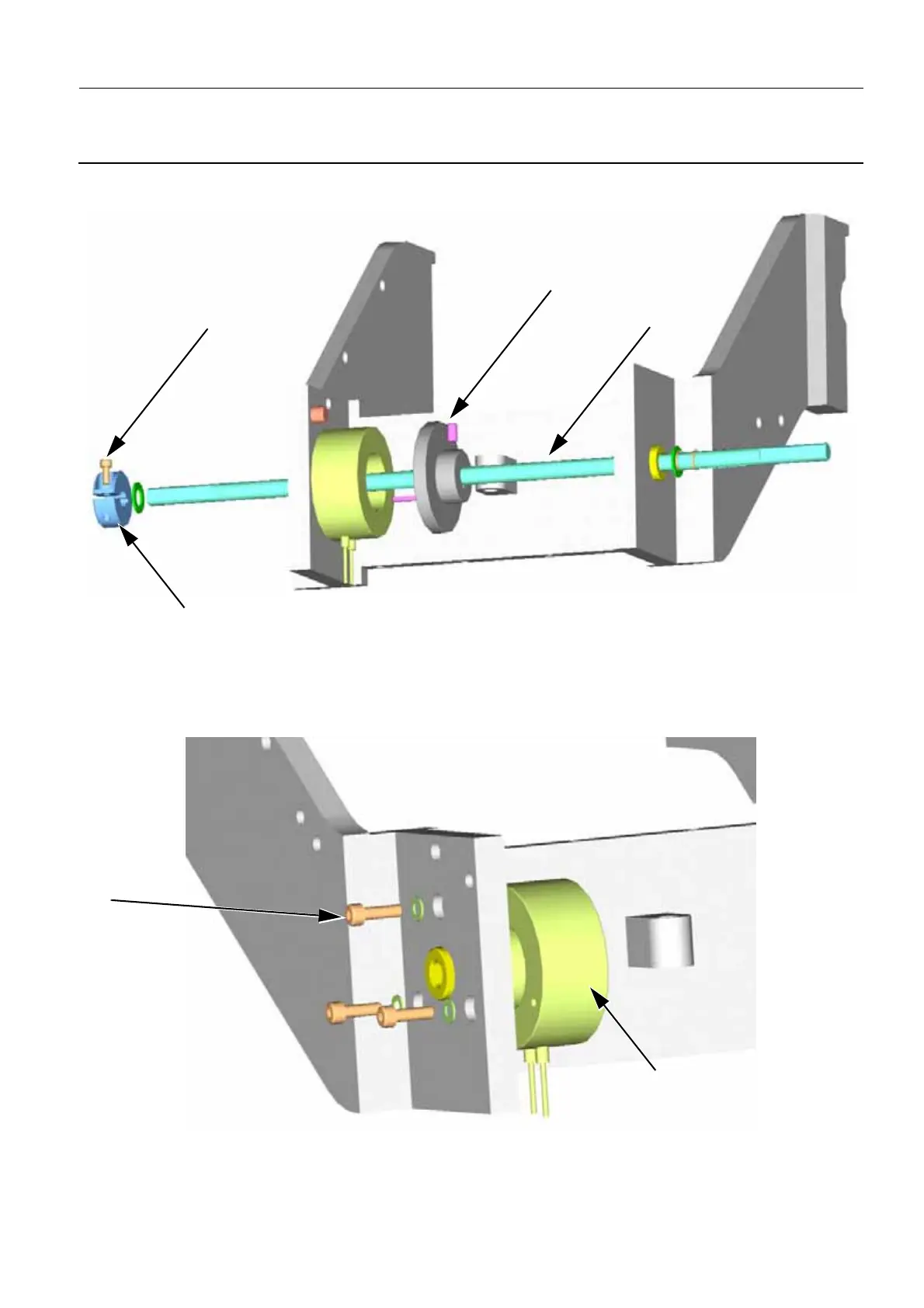

7. Release the M4 screw (10) (3 mm allen wrench) that secures the fixation ring (11).
8. Release the M5 set screw (12).
9. Pull out the Actuator axis (13).
10. Release the three M3 screws (14) fixing the compression brake (15) (2.5 mm allen wrench) and
remove the compression brake (15).
13
12
11
10
14
15
