GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A248 - Force Sensor
Page no. 1315 Chapter 9
JC-DR-A-248.fm
the ground cable from the Paddle Holder.
4. Remove the four pairs of M4 screws (4) (3 mm allen wrench), and then remove the upper and lower
parallel bar (5).

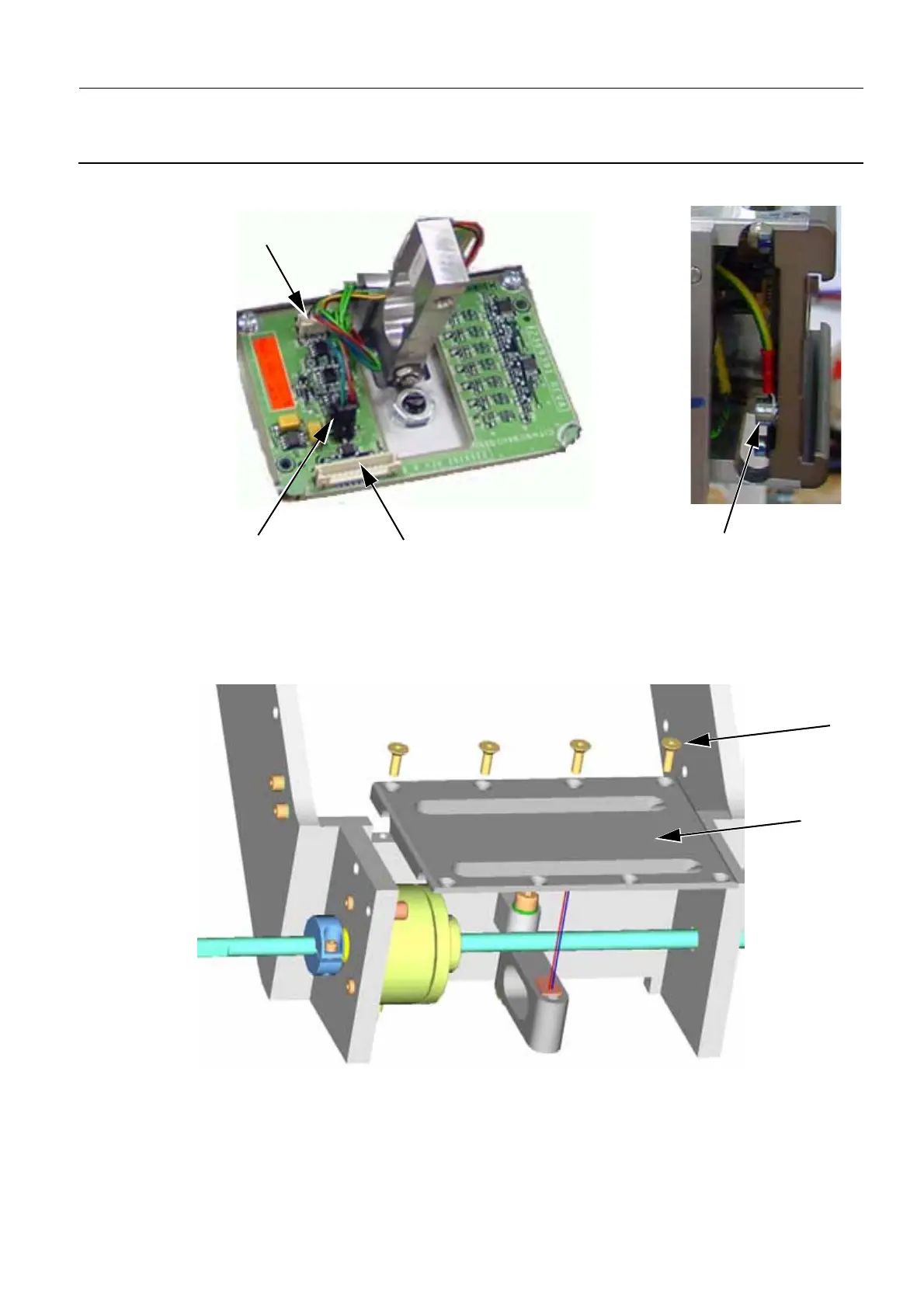

J2 : Paddle Recognition Cable
J1 : Force Sensor
J3 : Manual Compression Brake
(J1 / PL304 - W304)
(J3 / PL304 - W314)
(J2 / PL304 - W319)
Paddle Holder
Earth Cable
4
5
