GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A248 - Force Sensor
Page no. 1317 Chapter 9
JC-DR-A-248.fm
6-2 Reassembly of the Force Sensor
• Reverse the disassembly procedure, however at this stage do not reinstall the Padle Holder cover.
CAUTION
Take care to install the new Force Sensor in its original position (not inverted).

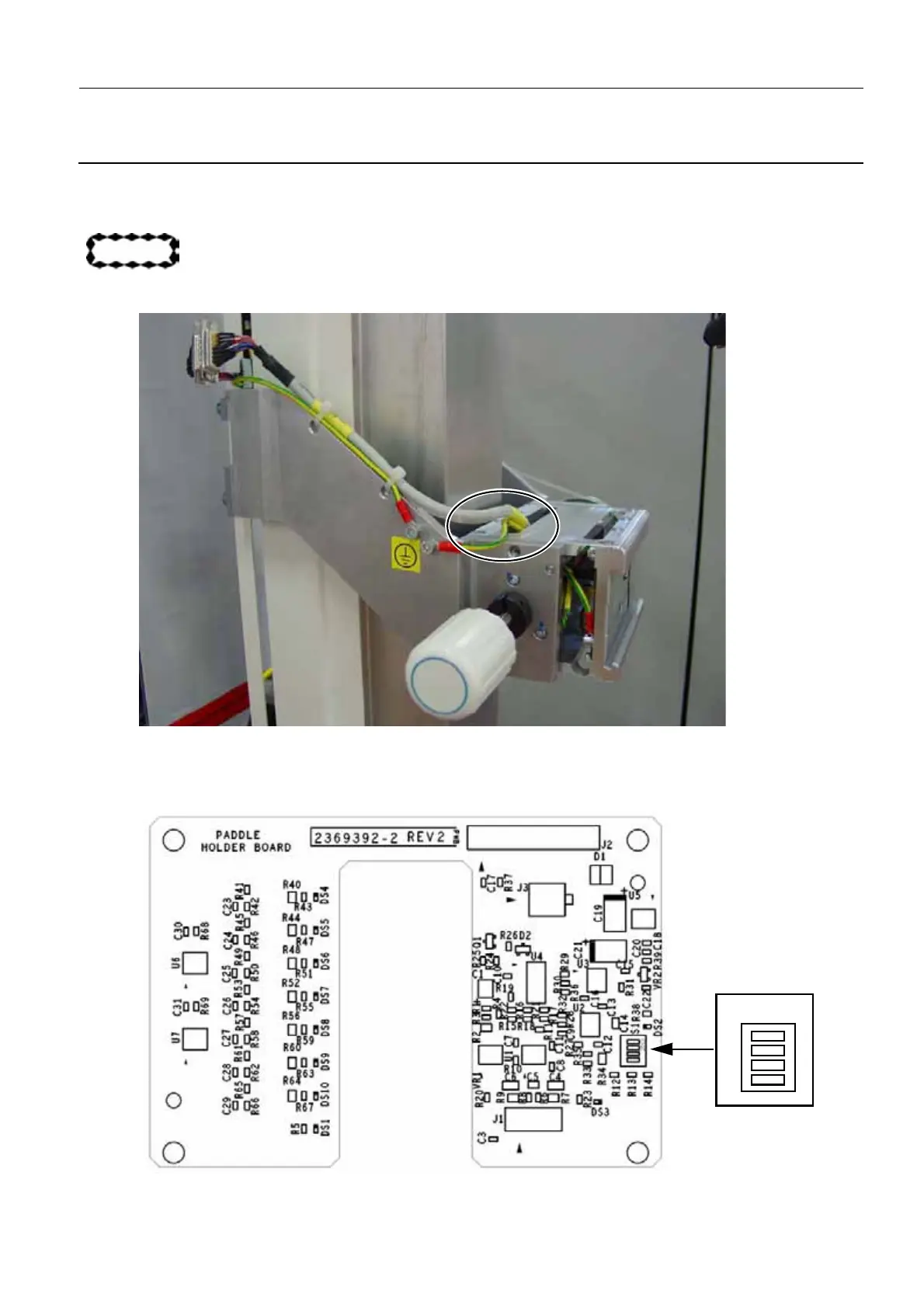

• Take care to correctly route the cables as shown in the illustration below.
6-3 Paddle Holder Board DIP Switch Setting
If the Senographe system contains a Paddle Holder Board (2369391-2) with DIP switches (see illustra-
tion below), set the DIP switches as detailed below.
1
2
3
4
OFF
ON
DIP Switch
To Next Page
