Chapter 9 Page no. 1326
JC-DR-A-250.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A250 - Compression Board

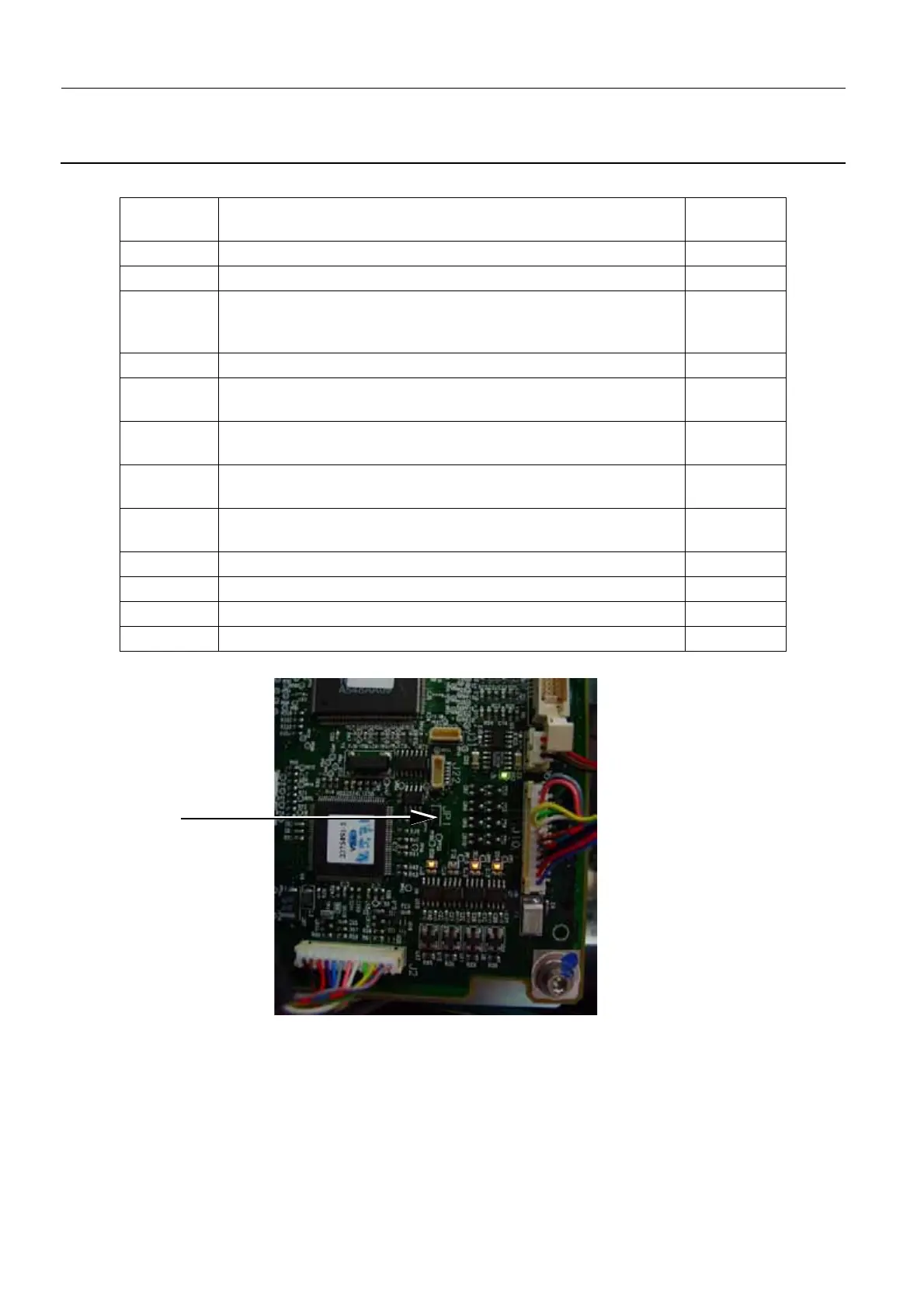

3. Ensure that jumper JP1 (3) that is to the left of the J6 connector on the Compression board is open.
Connector
Label
Description of cable
(usually identified by code on a yellow label)
Cable color
J1 J1/PL303-W307 Gray
J2 J2/PL303-W308 Gray
J3 J3/PL301-W301 Red, Blue,
Orange,
Yellow
J4 J4/PL301-W302 Gray ribbon
J5 J4/PL303-W309
covered with flexible plastic
Red/Green
Blue/Green
J6 J6/PL303-W303 Black, Red,
Green
J7 J7/PL303-W305
Note: Only connected when replacing the covers.
Light brown
ribbon
J8 J8/PL303-W305
Note: Only connected when replacing the covers.
Light brown
ribbon
J9 J9/PL303-W313 Grey robbon
J10 J7/PL303-W304 Gray
J21 Empty N/A
J22 Empty N/A
