Chapter 9 Page no. 1358
JC-DR-A-264.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A264 - Tilt Sensor
6 PROCEDURE
6-1 Disassembly of the Tilt Sensor

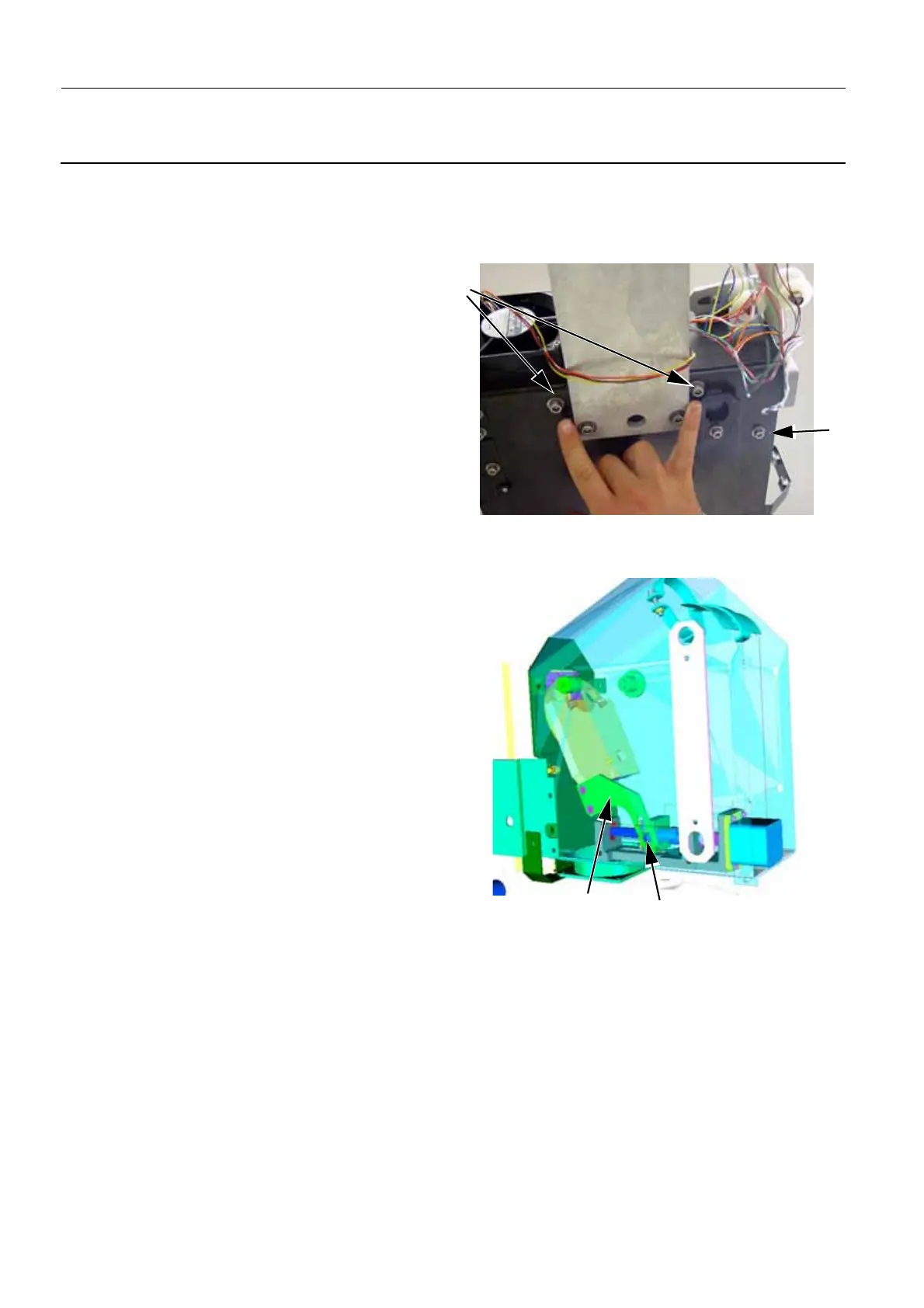

1. Unplug the Tilt Motor cable (W404) from the tilt
board (connector J3).
2. Unplug the Tilt Sensor cable (W405) from the
tilt board (connector J12).
3. Cut the two cable ties.
4. Remove the four screws (2) securing the
upper spacer (4 mm allen wrench).
5. Remove the two screws (3) securing the Tilt
Motor assembly (5 mm allen wrench).
6. Tilt the assembly manually from the top to
extract the coupling pin (4) from its fork (5) and
remove the assembly.
2
3
4
5
