Chapter 9 Page no. 1434
JC-DR-A-313.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A313 - Trackball

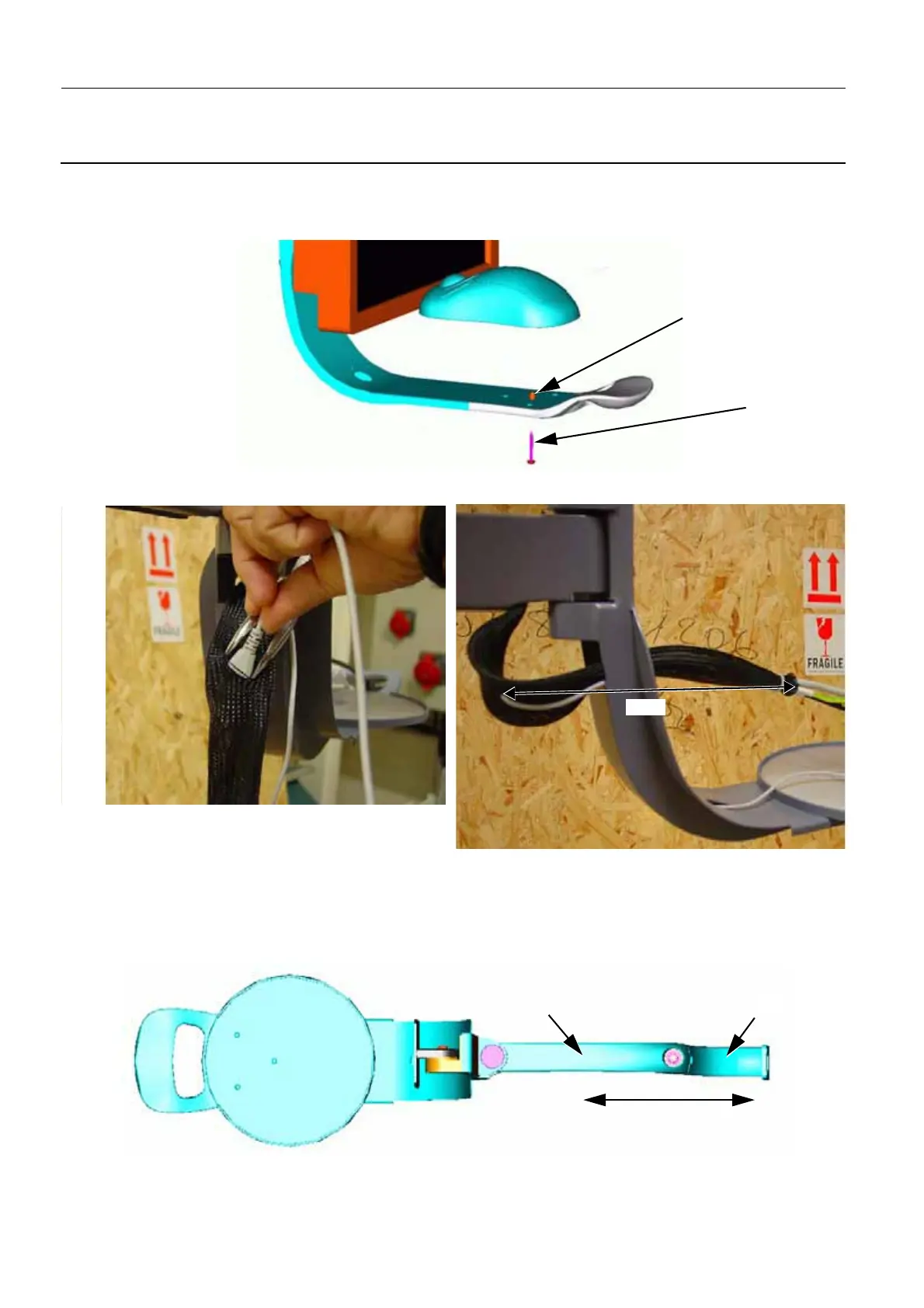

8-2 Reassembly of New Trackball on Sisfle Arm
1. Install and secure the trackball with the longest screw (1) (length = 38 mm) and spacer (2) that are
supplied with the Trackball Kit. The spacer must be located between the handle and the trackball.
2. Use pointed nose pliers to create an opening in the harness at 27 cm from the end of the harness.
3. Route the trackball cable through the opening in the harness, so that it leaves the other end of the
harness. Then route the track cable through the rotative arm support entrance into the Control Sta-
tion.
4. Ensure that the rotative arm (3) and rotative arm support (4) are aligned in the same plane. Carefully
put the monitor harness inside the rotative arm and rotative arm support.
1
2
27 cm
4
3
Aligned in the same plane.
To Next Page
