Chapter 9 Page no. 1450
JC-DR-A-315.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A315 - International Keyboard
8-2 Connect the new keyboard
1. Unplug and remove the X-ray Console.
2. Remove Control Station Top Cover. See Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503.
3. Remove Control Station Omega Cover. See Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503.
4. Disconnect the original keyboard from the back of the ADS Computer, and remove it from the Control
Station.
5. Put the new keyboard on the Control Station and connect it to the USB connector at back of the ADS
Computer (as illustrated above).
6. Reinstall the Omega Cover (see Job Card PHY A040 - Remove/Reinstall Control Station Covers on
page 503).
7. Reinstall the Top Cover (see Job Card PHY A040 - Remove/Reinstall Control Station Covers on
page 503).
8. Reinstall the X-ray Console.

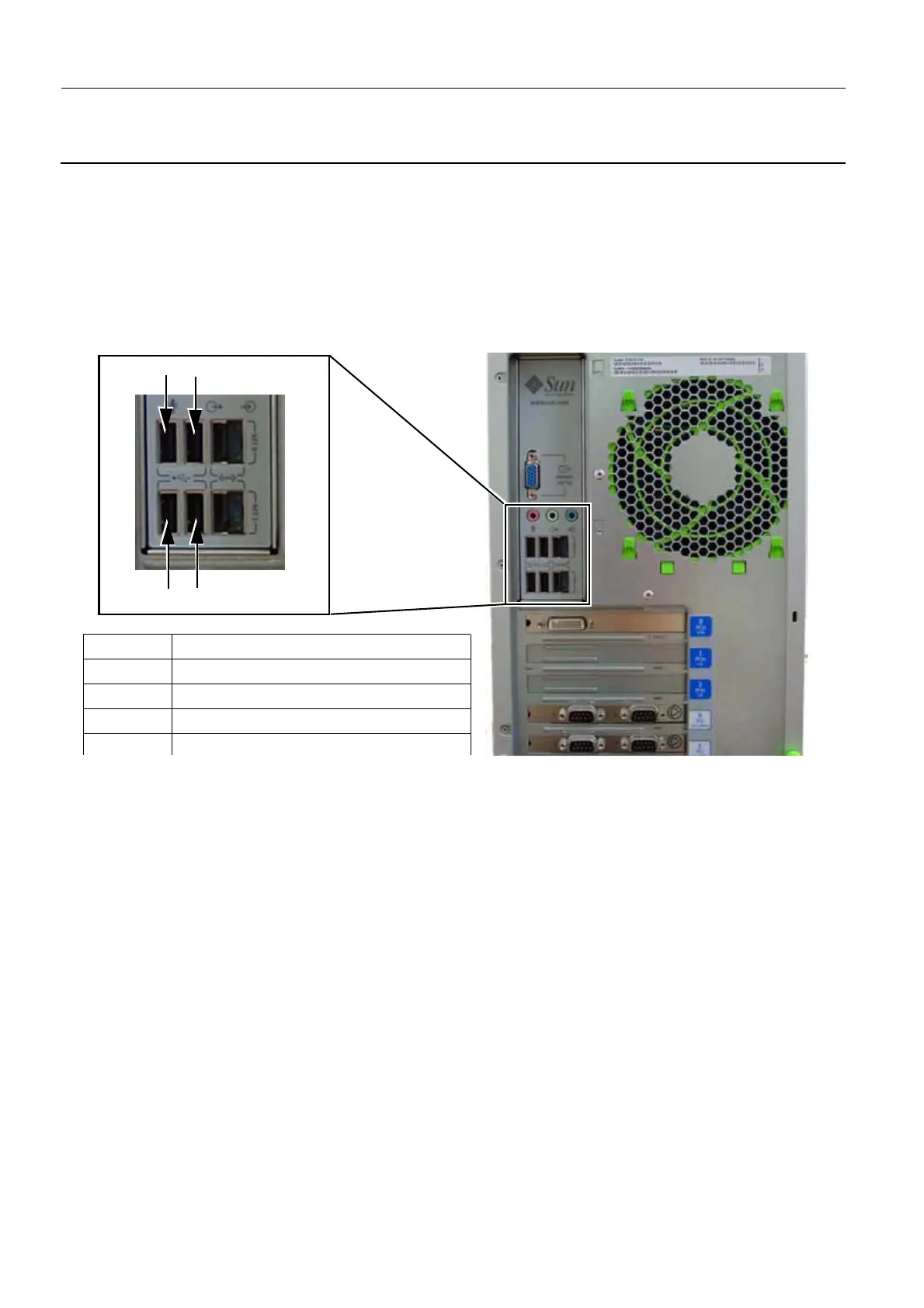

1
4
2
3
Reference Function
1 Mouse or Trackball USB Link
2 Keyboard USB Link
3 Bar Code Reader USB Link
4 Not used
