Chapter 9 Page no. 1458
JC-DR-A-316.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A316 - SB-150 CD-ROM Drive
7 PROCEDURE
1. Power off the system, and apply LOTO.
2. Unplug and remove the X-ray Console.
3. Remove Control Station Top Cover. See Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503.
4. Remove Control Station Omega Cover. See Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503.
5. Remove the AWS Computer (SB-150) from the Control Station (refer to Section 6-1, page 1401 in
Job Card D/R A311 - AWS Unit).

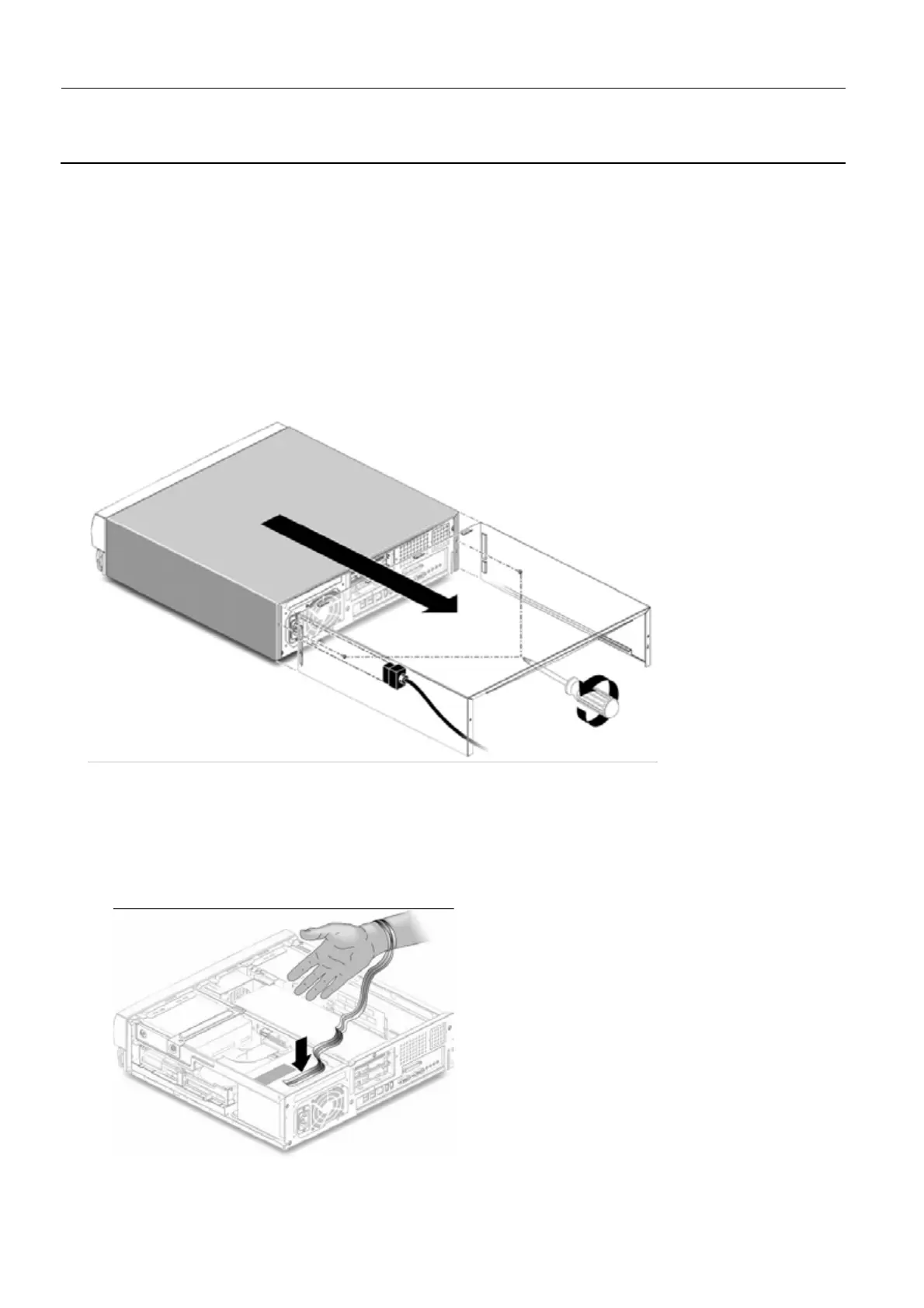

6. Remove the two screws (cross-head screwdriver) securing the SB-150 cover to the chassis.
7. Slide the SB-150 cover towards the rear of the SB-150 until the cover tabs release.
8. Lift the SB-150 cover straight up and put the cover aside in a safe place.
9. Take the following necessary ESD precautions:
a. Unwrap the first two folds of the wrist strap; wrap the adhesive side firmly against your wrist.
b. Peel the liner from the copper foil at the opposite end of the wrist strap.
c. Attach the copper end of the wrist strap to the chassis.
To Next Page
