GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A318 - LCD Monitor
Page no. 1479 Chapter 9
JC-DR-A-318.fm
7-2 21" 3MP Monitor

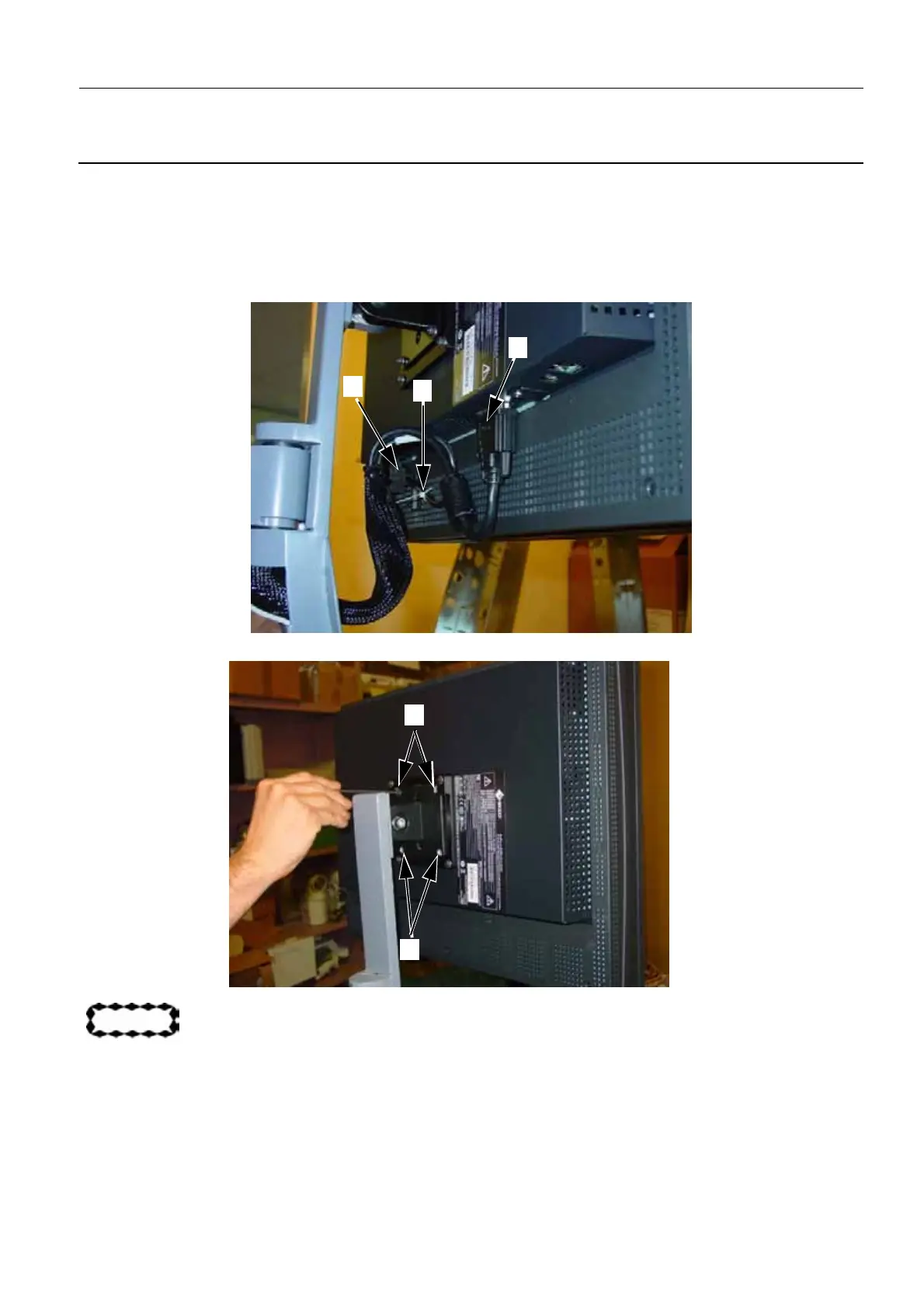

7-2-1 Disassembly - 21" 3MP Monitors
1. Cut and remove the cable tie (1) that secures the power cable to the back of the LCD monitor.
2. Disconnect the power supply cable (2) from the monitor.
3. Disconnect the DVI cable (3).
4. Remove the four inner screws (4) securing the monitor (3 mm allen wrench).
CAUTION
Do not remove the four external screws.
5. Carefully slide the monitor up the support to remove it from the rotative arm.
2
1
3
4
4
To Next Page
