Job Card D/R A319 - Rotative Arm
c. On V3/V4 Control Stations, thread the ferrite ring (9) of the DVI video cable inside the rotative arm
support. While keeping the DVI connector outside (10) move the DVI video cable to the bottom of
the rotative arm support.

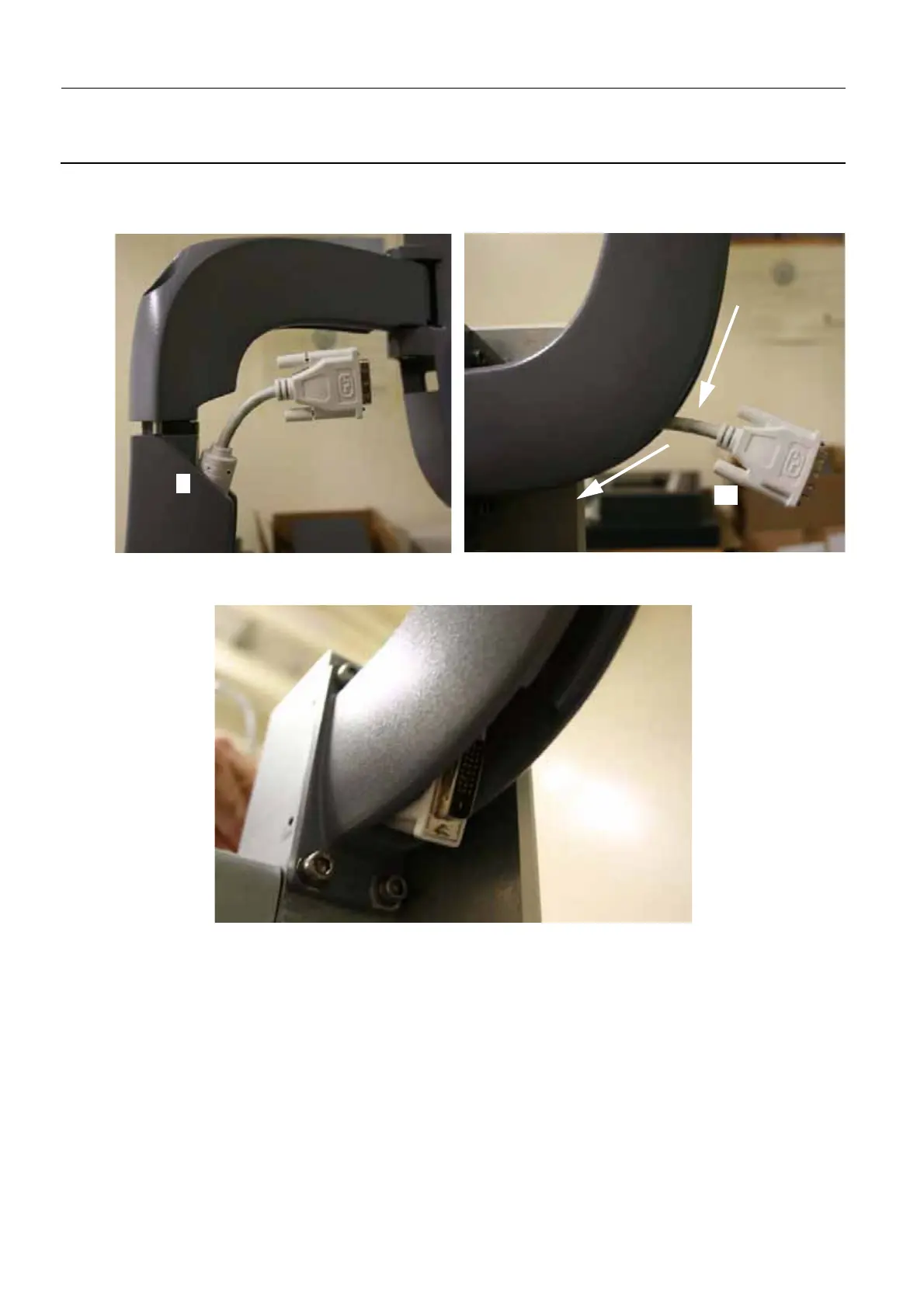

d. On V3/V4 Control Stations, thread the DVI video cable through the opening of the rotative arm
support as shown below.
9
10
