Job Card D/R A319 - Rotative Arm

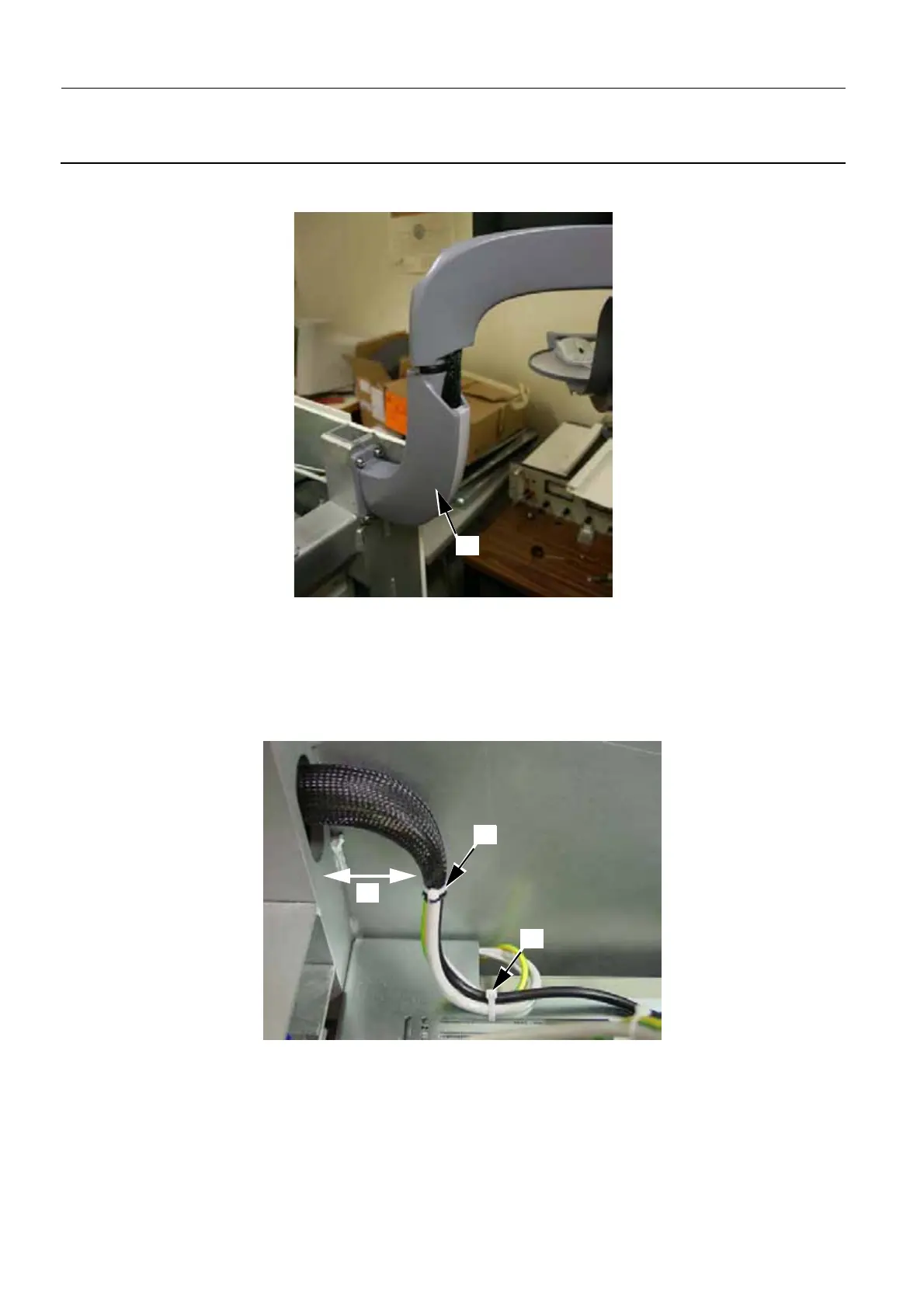

13. Insert the lower silicone mask (longer of the two) (14) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
14. Reconnect the mouse to the ADS computer.
15. Ensure that the monitor cables have sufficient slack (15) within the Control Station so that they can
move. This ensures that the movement of the monitor cables are not inhibited when the rotative arm
is turned. Secure the harness to the monitor cables and mouse cable with a cable tie at 1 cm from
the end of the harness (16). Secure the monitor cables and mouse cable to the Control Station
framework with a cable tie (17).
14
16
15
17
