Chapter 9 Page no. 1518
JC-DR-A-322.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A322 - RJ-45 Service Network Patch Panel
7 PROCEDURE

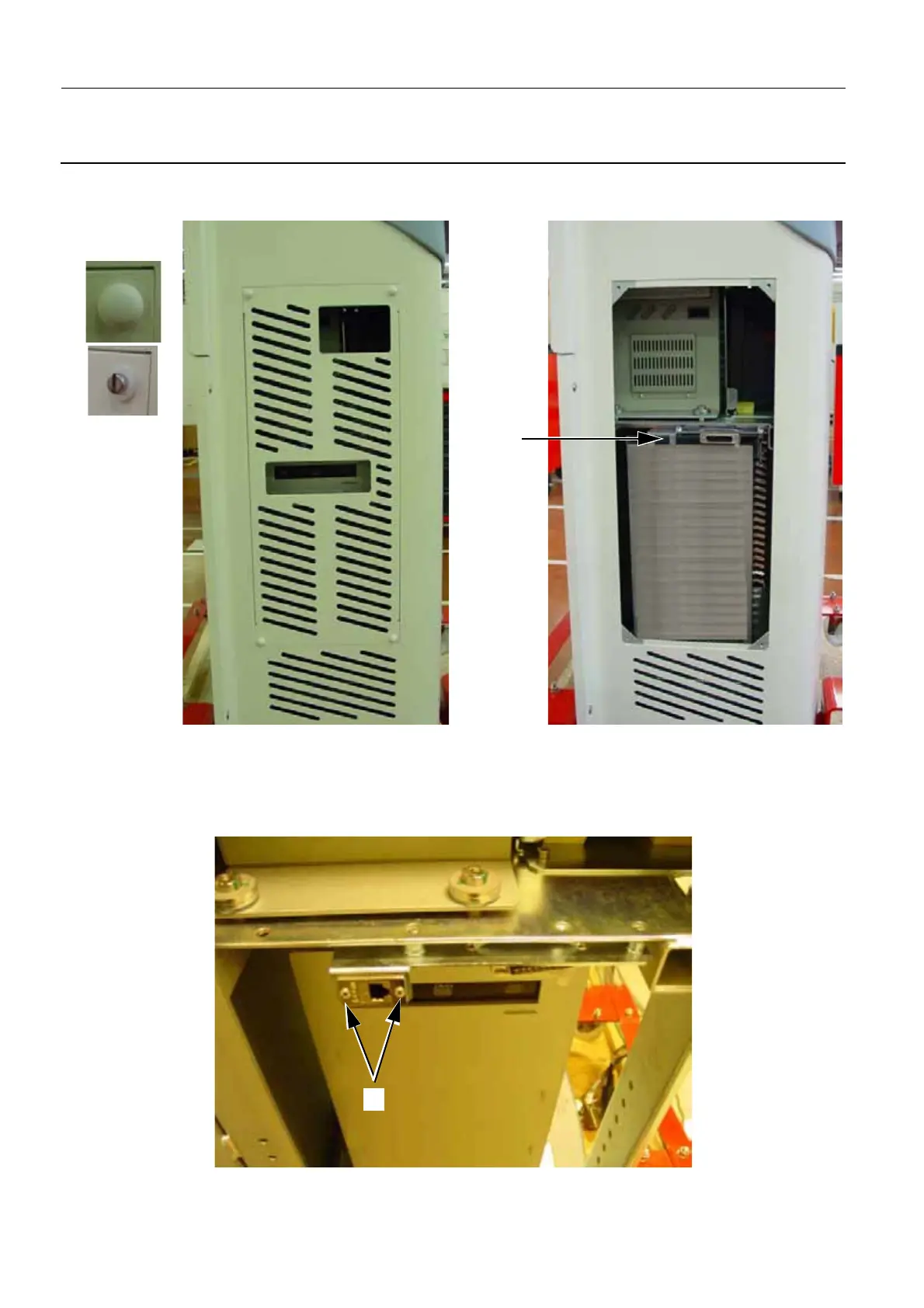

1. Carefully remove the caps from each corner of the Omega window.
2. Remove each of the four screws and plastic washers from each corner of the Omega window, and
remove the Omega window to reveal the RJ-45 Service connector (1).
3. Disconnect the Ethernet cable from the rear of the socket of the RJ-45 Service Network Patch Panel.
4. Remove the two screws (2) (small cross-head screwdriver) securing the RJ-45 Service Network
Patch Panel, and remove the RJ-45 Service Network Patch Panel.
1
2
