Chapter 9 Page no. 1534
JC-DR-A-332.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A332 - UPS Battery Replacement

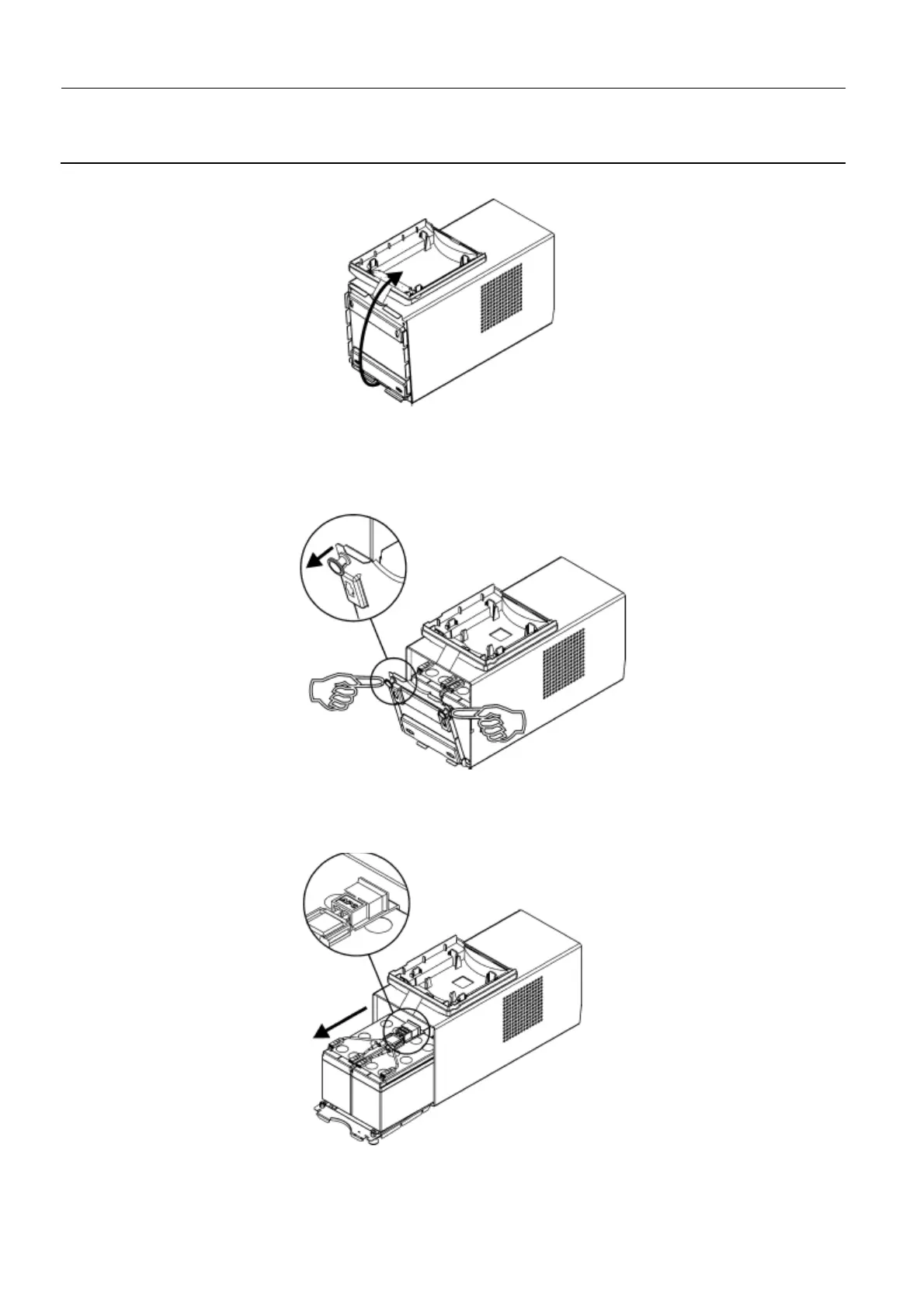

5. Use a flat-blade screwdriver or a coin to remove the two battery door screws and open the door.
Grasp the tab and gently pull the battery out of the UPS.
6. Disconnect the battery leads. Loosen the connectors by gently wiggling them while pulling
straight back from the battery connector.
