GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A414 - Power Line Filter Box
Page no. 1621 Chapter 9
JC-DR-A-414.fm
(3 mm allen wrench).

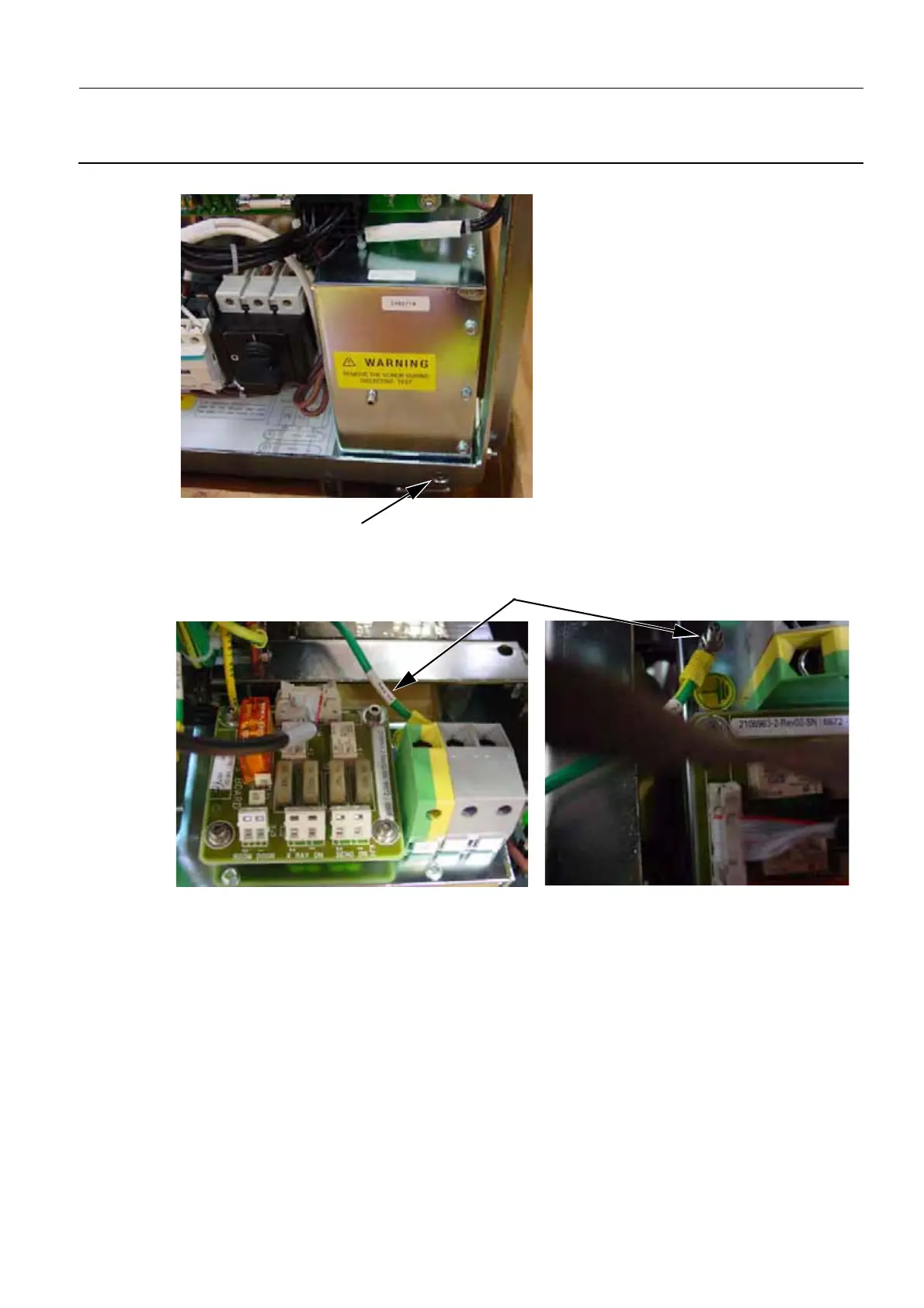

4. Connect the earth cable lablelled FILTRE (3) to the Power Line Filter (4 mm open ended wrench).
5. Carefully place the Generator Relay board (that you removed from the faulty Power Line Filter) on
the new Power Line Filter. Ensure that the holes for the four allen screws line up with the four threads
2
3
