Page no. 199
Location-G
antry_DS.fm
GE Healthcare
Senographe DS
Revision 1
Service Information and Pr
ocedures Class A 2385072-16-8EN
3-1-11.

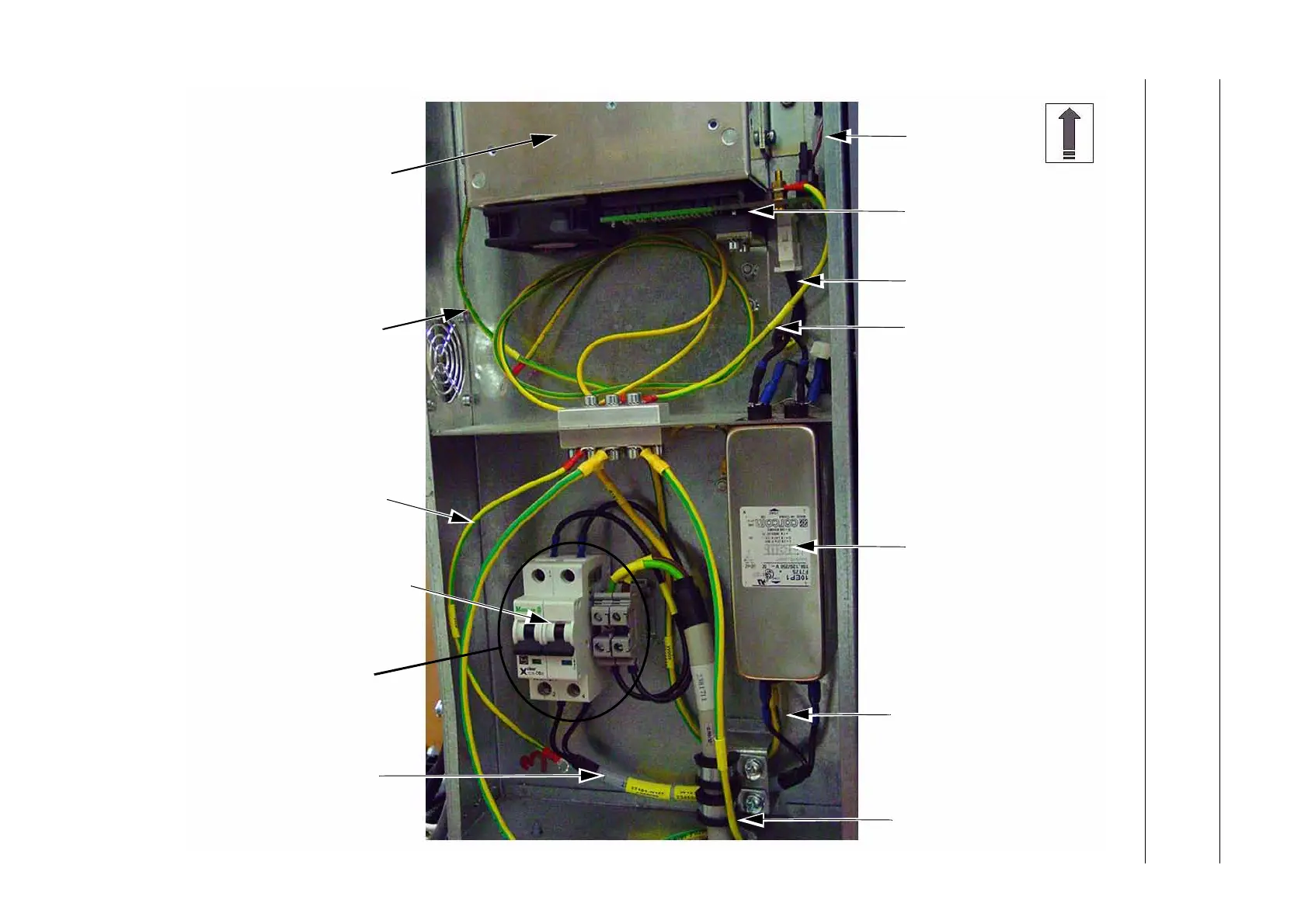

MPCB - Bulkhead area
Cable W127
Cable W006
Cable W106
Cable W107
Cable W002
Input I/F Board
PL102
AC/DC Converter
EMC Filter
E101
Cable W004
Cable W005
Circuit Breaker 10A
Terminal Block
ST101
Cable W001
Module
