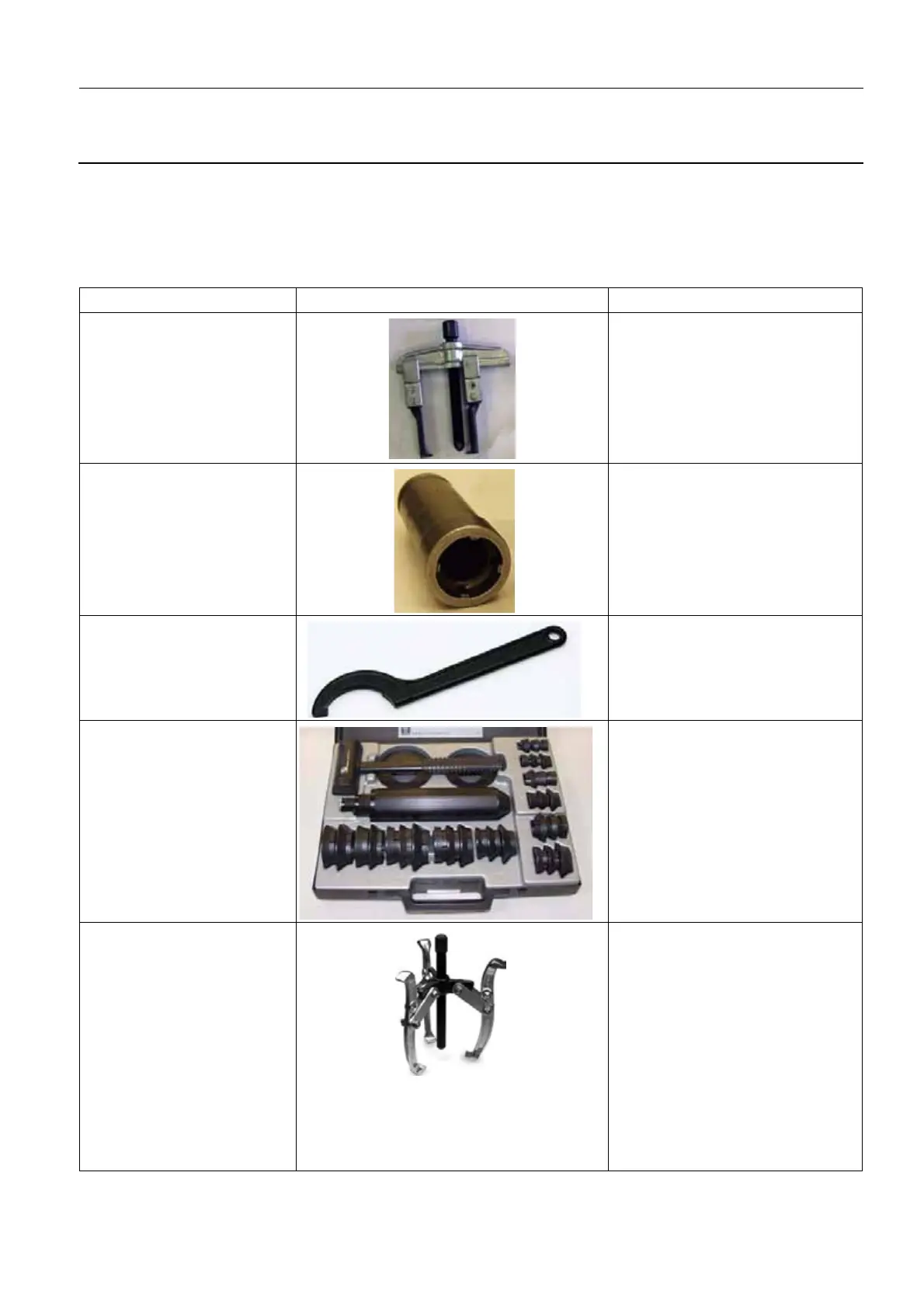

1-2. Professional Mechanical Tools
The following table summarizes all of the professional mechanical tools that do not have to exist in a
Standard Tool Box. Professional mechanical tools cannot be ordered from GE, but can be sourced from
any professional hardware store. These tools are only required when changing a few components in the
Senographe system.
Tools Where Used
Bearing Jaw Puller
Axial Lock Nut Socket (for
KM15 Lock Nuts - 98 mm
diameter)
HN15 Hook Spanner (for
KM15 Lock Nuts - 98 mm
diameter)
Bearing Fitting Tool Kit (SKF)
Hub Extractor
Minimum specifications: jaw
reach > 100 mm, jaw spread > 90 mm.
Suitable models are the Grainger 4YT15
and Belzer 4532-0.
Job Card D/R A205 - Lift Motor on
page 1179
Job Card D/R A228 - Rotation
Motor on page 1243
Job Card D/R A244 - Compression
Motor with Encoder and Compres-
sion Belt on page 1297
