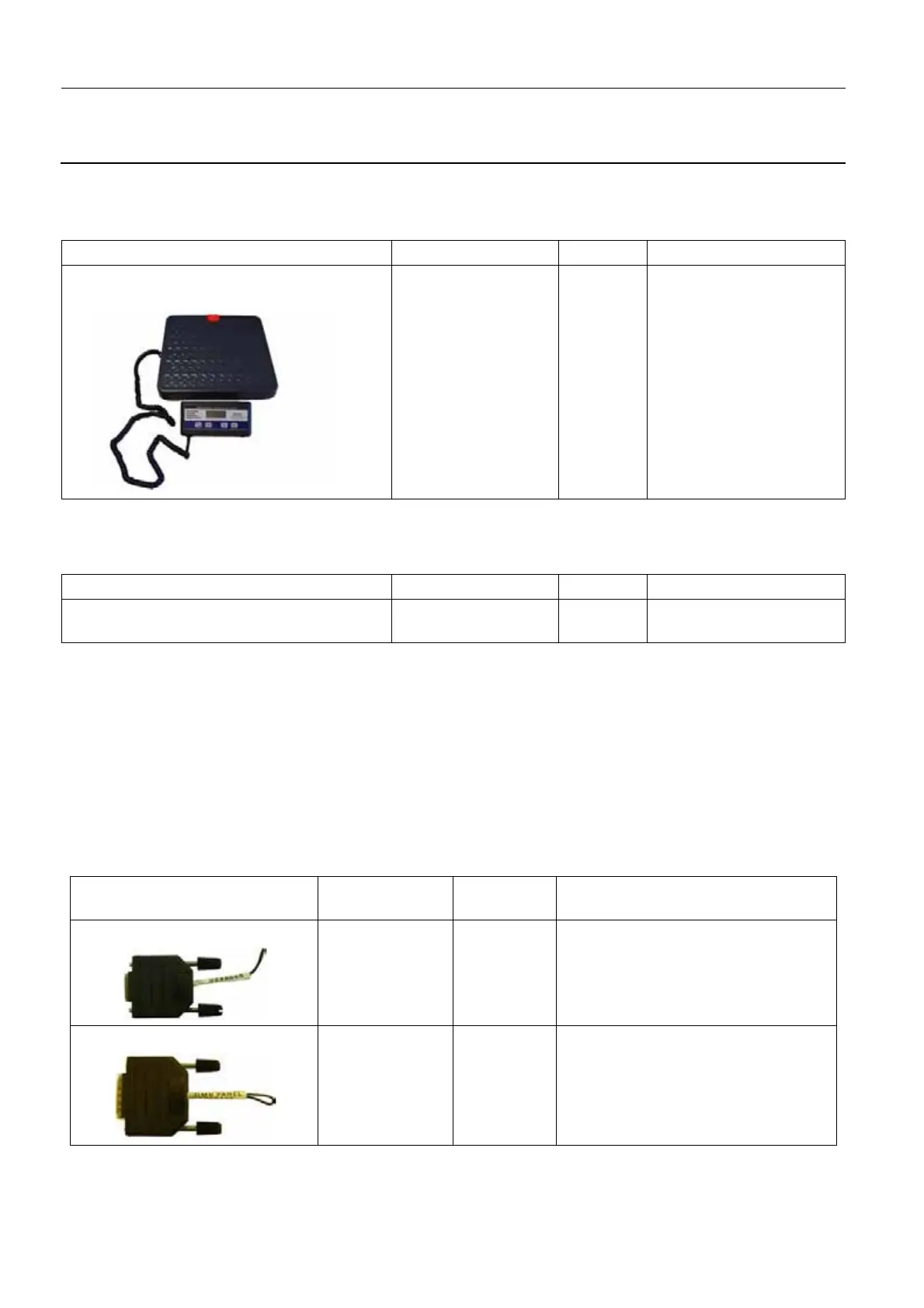

2-3-5. Mammography Compression Scales
The table below summarizes the recommended compression scales that you can use to perform com-
pression calibration measurements on the Senographe system.
2-3-6. X-ray Waveform Meters
The table below summarizes the recommended X-ray waveform meters that you can use to perform X-
ray waveform measurements on the Senographe system.
Mammography Compression Scale PN Orderable How supplied
Mammography compression scale with digital
display
46-194427P407 Y FE supply
X-ray waveform meters PN Orderable How supplied
X-ray waveform meter RMI 233 and oscillo-
scope
Name/photo PN Used
Elsewhere
Function
Connector-Loopback UPS 2248665 N 9-pin loopback adapter, which can be
used to perform loopback tests with
COM ports on the UPS, IDC and ADS
Computer.
Connector-Loopback Generator 2248430 N 2-pin loopback adapter, which is used
solely for loopback tests on the Gener-
ator.
2-4. Loopback Kit
The loopback kit (PN 2247879-4) comprises various parts, which are used to perform loopback tests on
the different components of the Senographe system. The loopback kit is supplied within the
Senographe system accessory kit (PN 2383183-4). The loopback kit is an orderable FRU, and all of the
parts of the loopback kit are also orderable as a FRU. Some of these parts are also used in the actual
Senographe system. The following table summarizes the loopback kit parts in terms of their function,
part number, and whether there are also used elsewhere within the Senographe system. The parts that
are also used elsewhere within the Senographe system are also listed in the Component Index.
