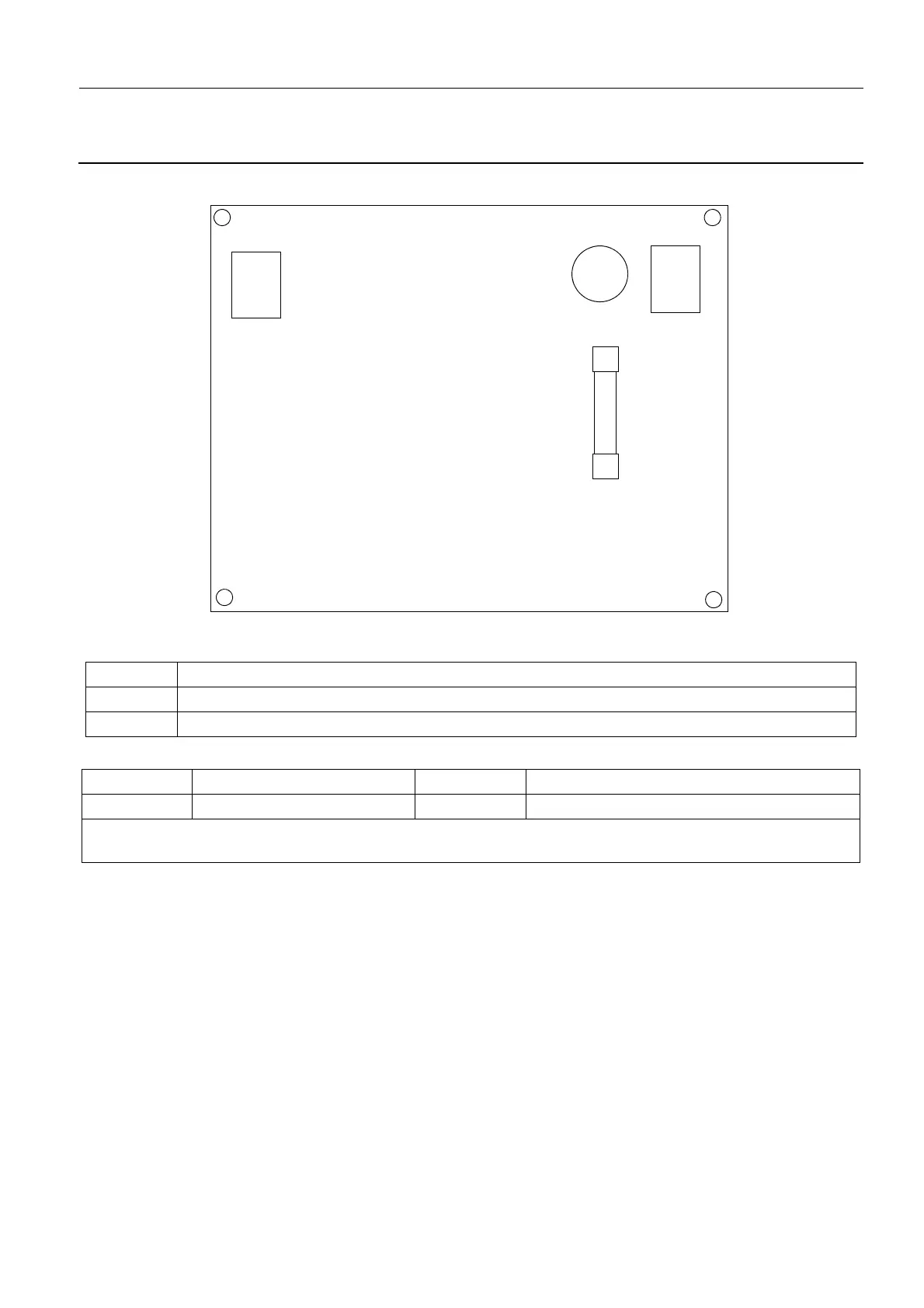

3-2 Low Voltage Power Supply
3-2-1. Low Voltage Power Supply Connectors
3-2-2. Low Voltage Power Supply Fuses
Connector Function
IN 240 V Supply from Primary Transformer
OUT 240 V Supply to Conditioner
Fuse Specification PN Function
F1 220 Vdc, 2.5 A, Fast N/A AC input LVPS protection
Note: The F1 Fuse on the Low Voltage Power Supply cannot be changed. If the F1 fuse is faulty you must
change the Low Voltage Power Supply Board.
F1
OUT
IN
