GE Senographe DS User Manual

Chapter 4 Page no. 342
Chap-Pre-Requirements.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Pre-Installation System Requirements

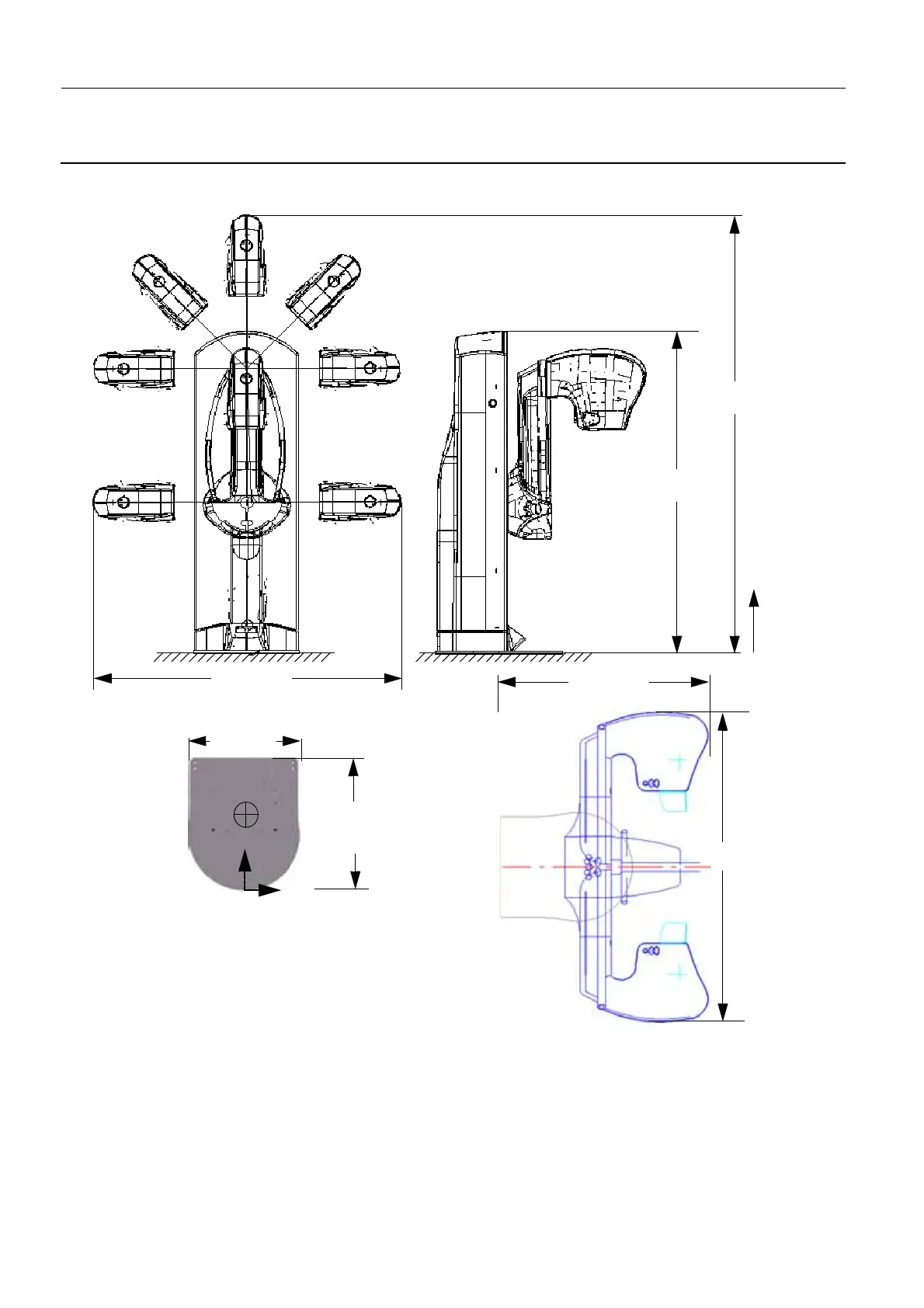

ILLUSTRATION 2 - GANTRY DIMENSIONS - MM (INCH)
• Anchor Points for the Gantry
Refer to Anchoring Inserts on page 354.
1930 (76)
All measurements shown as: mm (inches)
2447 (96.4)
1273 (50.1)
1842 (72.5)
Gantry base
1842 (72.5)
630 (24.8)
788 (31.0)
X
Y
Z
Center of Gravity (CG):
X = 325 (12.8)
Y = 3 (0.12)
Z = 1024 (40.3
)
Z
CG
CG
plate
2430 (94.67)
Maximum
Height
