GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A004 - Radiation Screen Installation
Page no. 407 Chapter 6
JC-PHY-A-004.fm

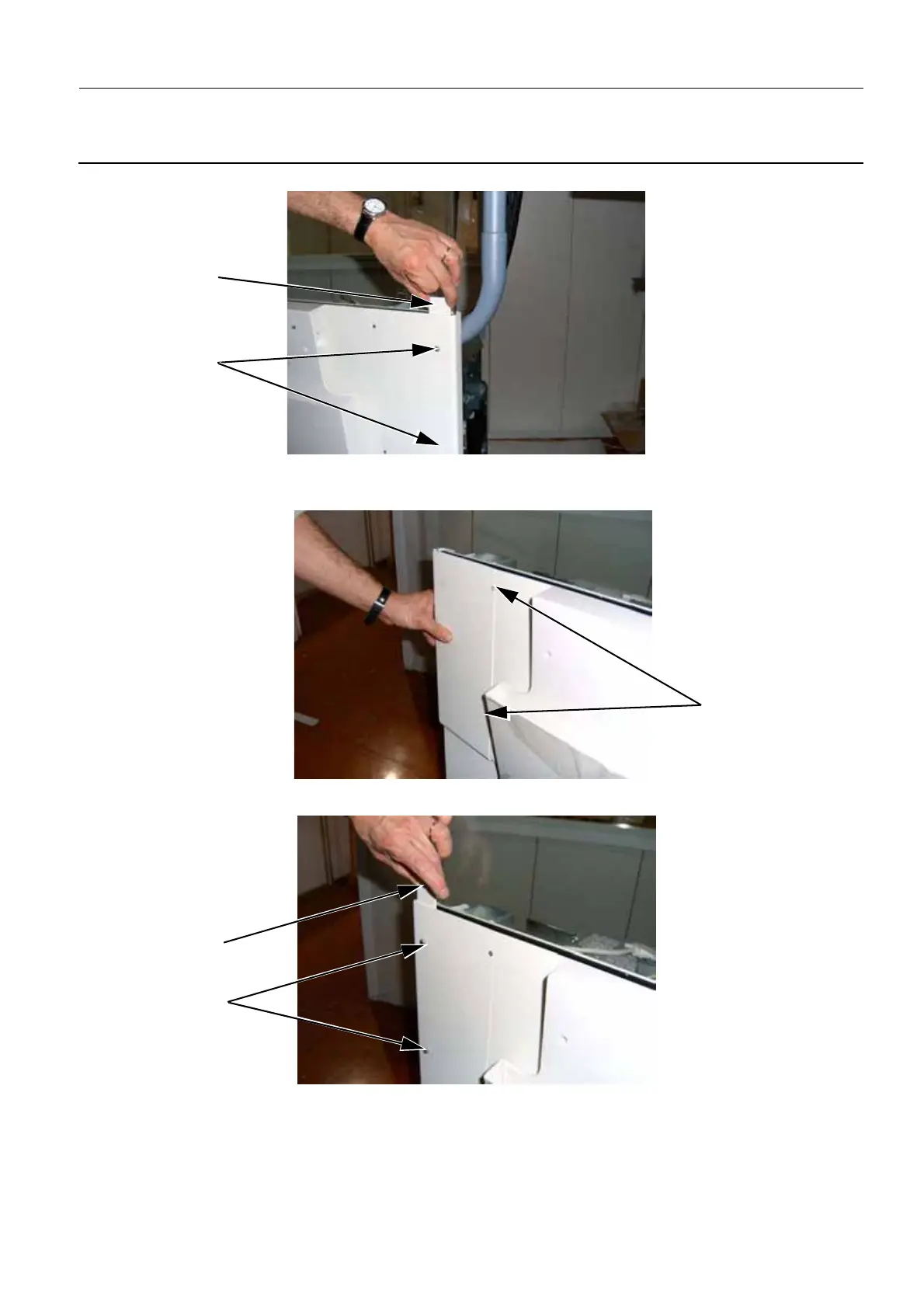

3. Carefully introduce one pinch plate (5) between the edge pinch and the radiation screen.
4. Tighten with moderation the two screws (6).
5. Reinstall each edge pinch that you previously removed and secure it with two screws (7).
6. Carefully introduce one pinch plate (8) between the edge pinch and the radiation screen.
7. Tighten with moderation the two screws (9).
6
5
7
9
8
