GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A014 - Connect Gantry to Control Station
Page no. 463 Chapter 6
JC-PHY-A-014.fm
6-7 UPS Battery Connection
The battery plug to the UPS is not connected at delivery time. Firmly connect the battery plug to the bat-
tery on the UPS as shown below.
Battery
Connection

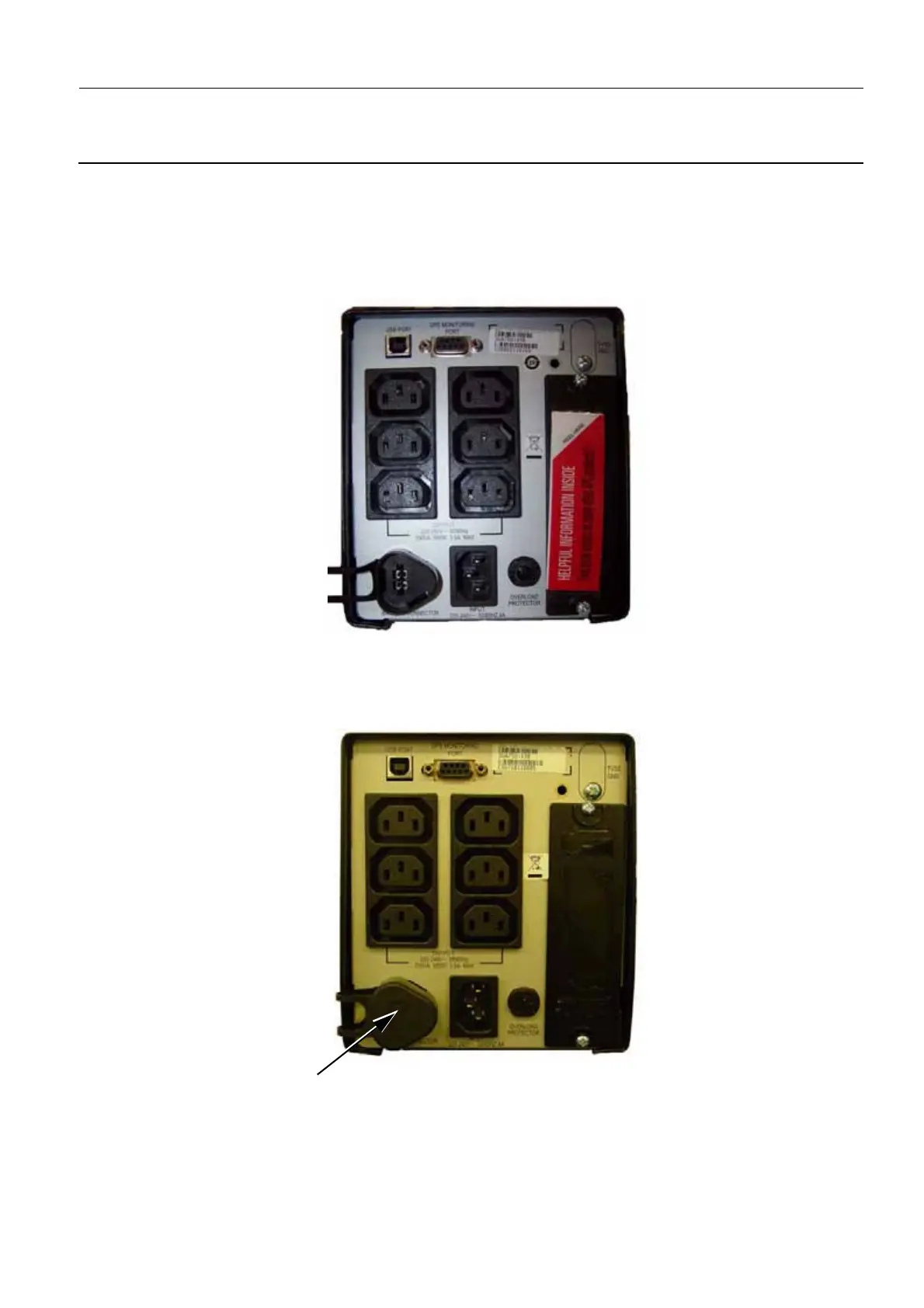

UPS battery disconnected at delivery time
Connect UPS battery as shown below
