4.3 Integrated calculator
4.3 Integrated calculator
Operation

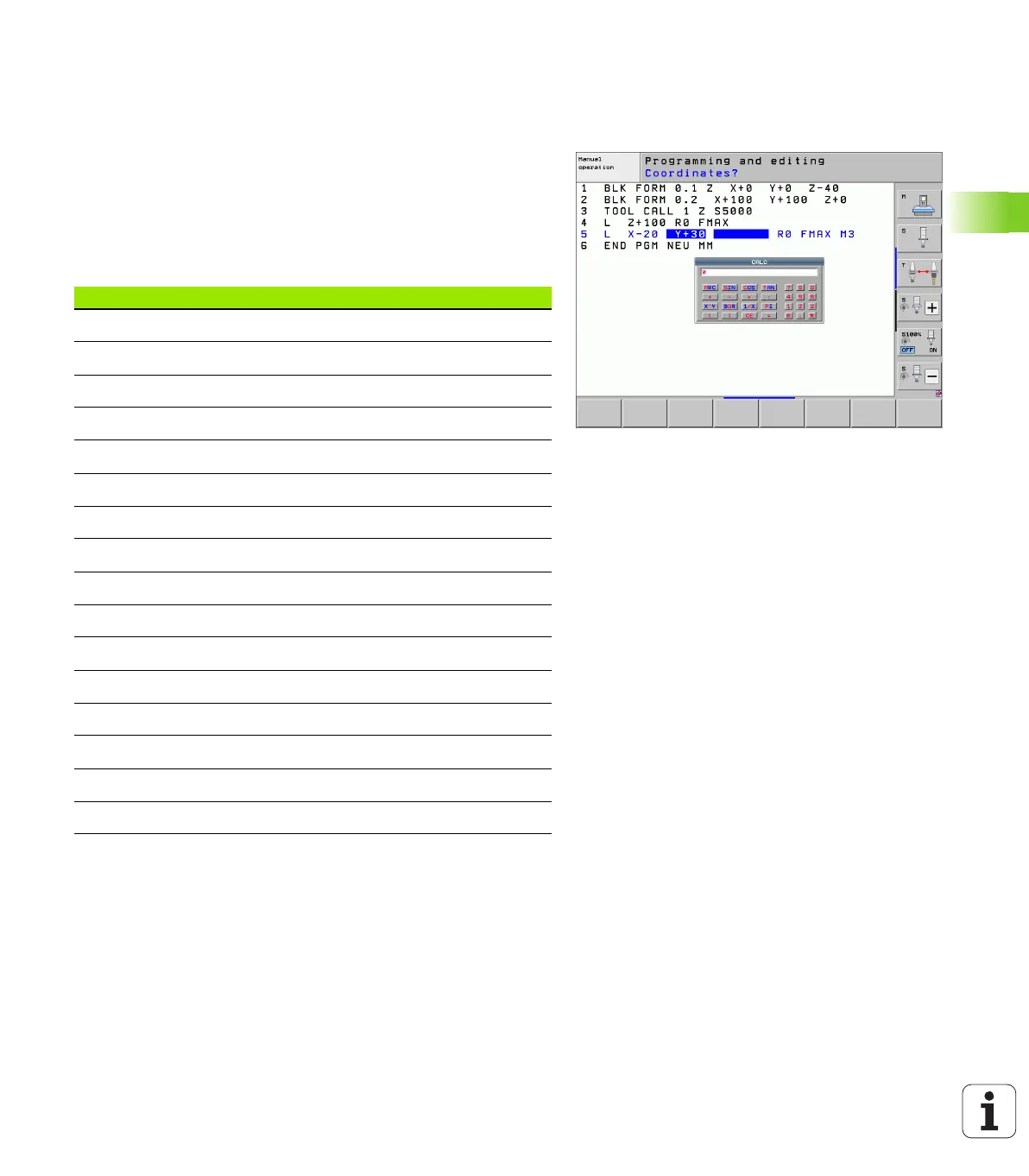

The TNC features an integrated calculator with the basic mathematical
functions.
 Use the CALC key to show and hide the on-line calculator
 The calculator is operated with short commands through the
alphabetic keyboard. The commands are shown in a special color in
the calculator window
Transferring the calculated value into the program
 Use the arrow keys to select the word into which the calculated
value is to be transferred
 Superimpose the on-line calculator by pressing the CALC key and
perform the desired calculation
 Press the actual-position-capture key for the TNC to transfer the
calculated value into the active input box and to close the calculator
Mathematical function Command (key)
Addition +
Subtraction –
Multiplication *
Division :
Sine S
Cosine C
Tangent T
Arc sine AS
Arc cosine AC
Arc tangent AT
Powers ^
Square root Q
Inversion /
Calculations in parentheses ( )
pi (3.14159265359) P
Display result =
