584 Manual Operation and Setup

14.4 Functional safety FS (option)

Overview of permitted feed rates and speeds

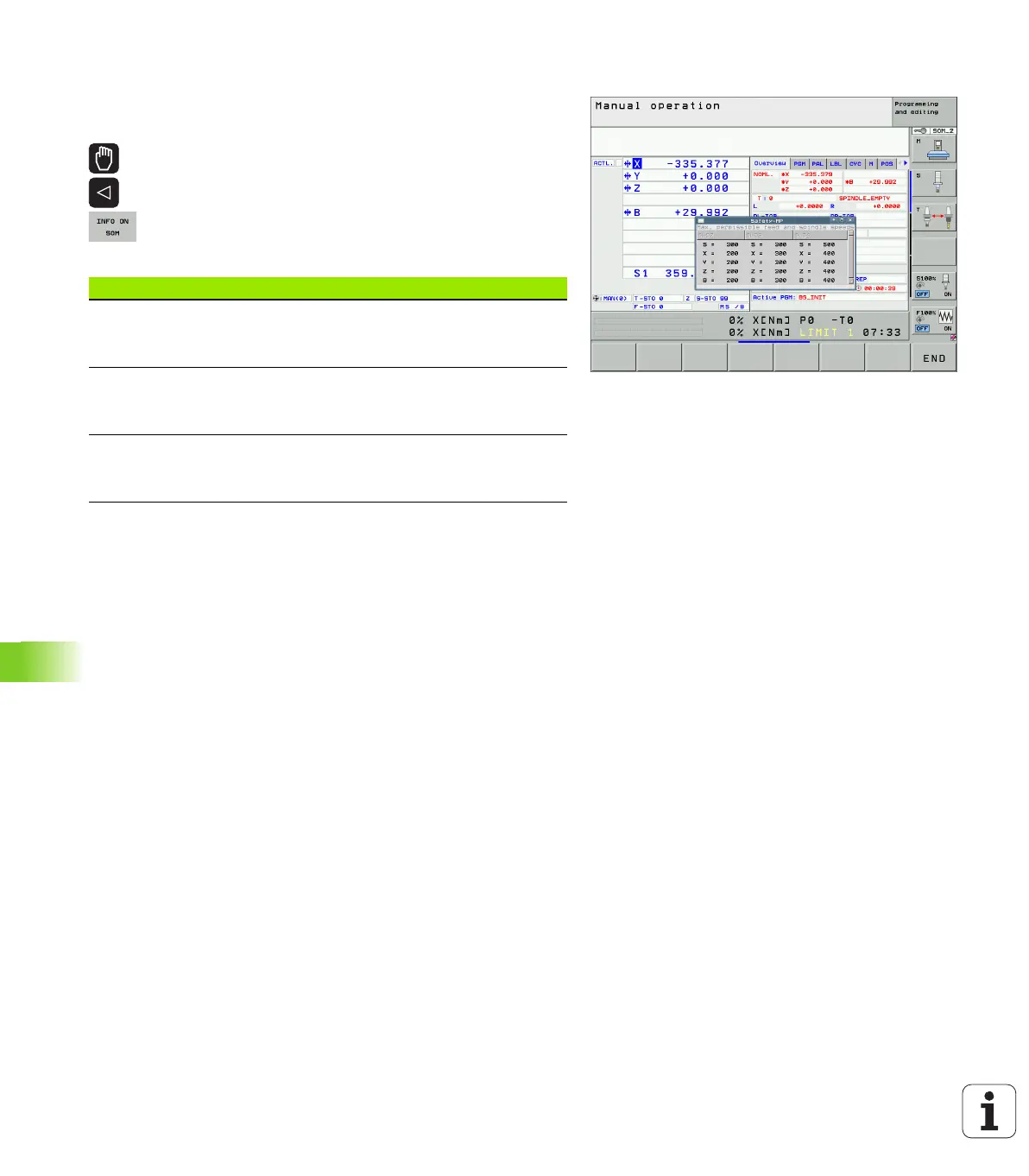

The TNC provides an overview of the permitted speeds and feed rates

for all axes depending on the active mode of operation.

 Select the Manual Operation mode

 Scroll to the last soft-key row

 Press the INFO SOM soft key: The TNC opens the

window containing the overview of permitted speeds

and feed rates

Column Meaning

SLS2 Safely limited speeds in the safety-related

operating mode 2(SOM_2) for the respective

axes

SLS3 Safely limited speeds in the safety-related

operating mode 3 (SOM_3) for the respective

axes

SLS4 Safely limited speeds in the safety-related

operating mode 4 (SOM_4) for the respective

axes
