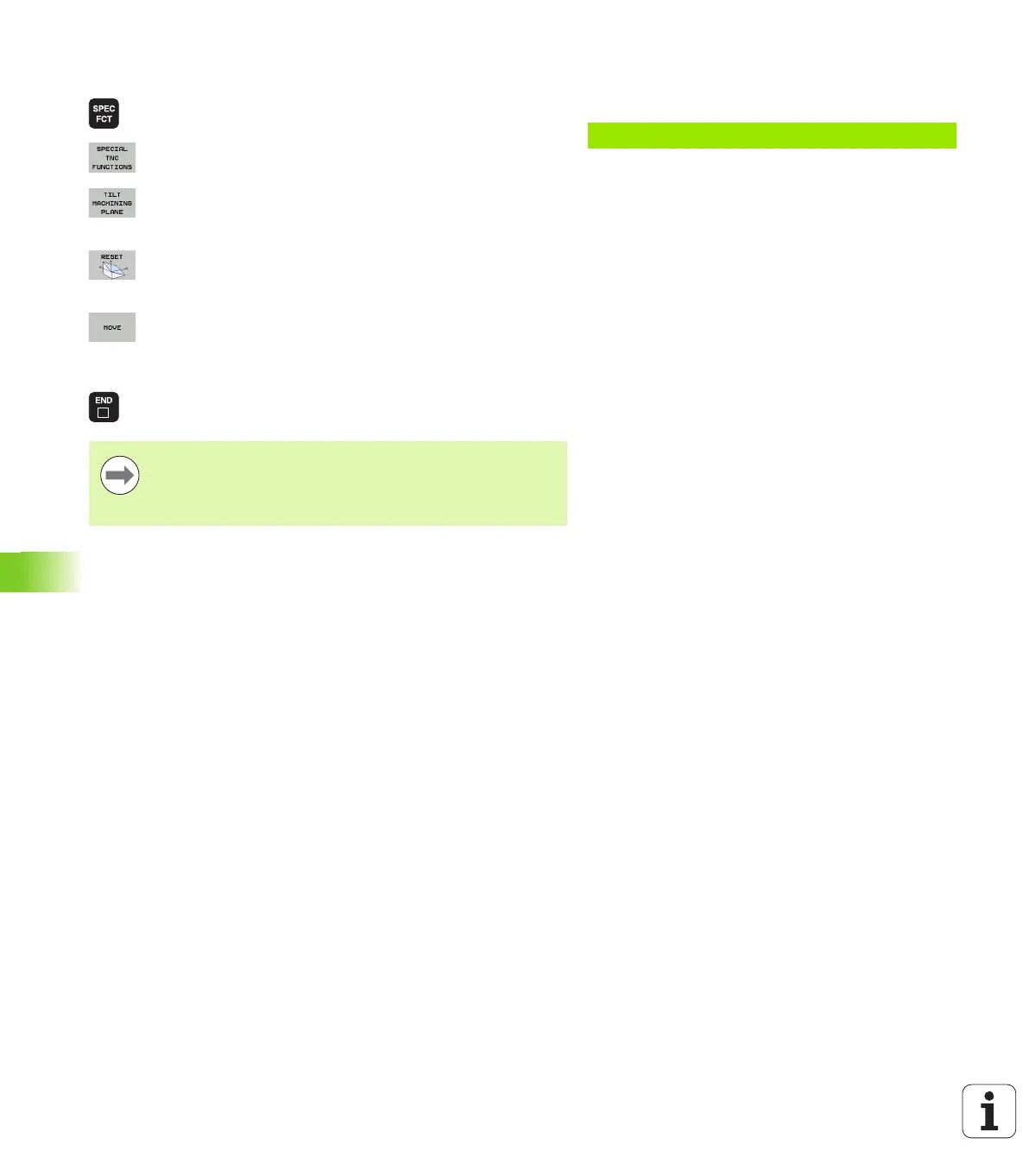

12.3 The PLANE function: Tilting the working plane (software option 1)
Resetting the PLANE function
Show the soft-key row with special functions
To select special TNC functions, press the SPECIAL
TNC FUNCT. soft key
Select the PLANE function: Press the TILT
MACHINING PLANE soft key: The TNC displays the
available definition possibilities in the soft-key row
Select the Reset function. This internally resets the
PLANE function, but does not change the current axis
positions
Specify whether the TNC should automatically move
the rotary axes to the default setting (MOVE or TURN) or
not (STAY), (see "Automatic positioning:
MOVE/TURN/STAY (entry is mandatory)" on page 506)
Terminate the entry: Press the END key
Beispiel: NC block
25 PLANE RESET MOVE DIST50 F1000
The PLANE RESET function resets the current
PLANEfunction—or an active cycle 19—completely (angles
= 0 and function is inactive). It does not need to be defined
more than once.
