2.2 Visual display unit and keyboard
Operating panel

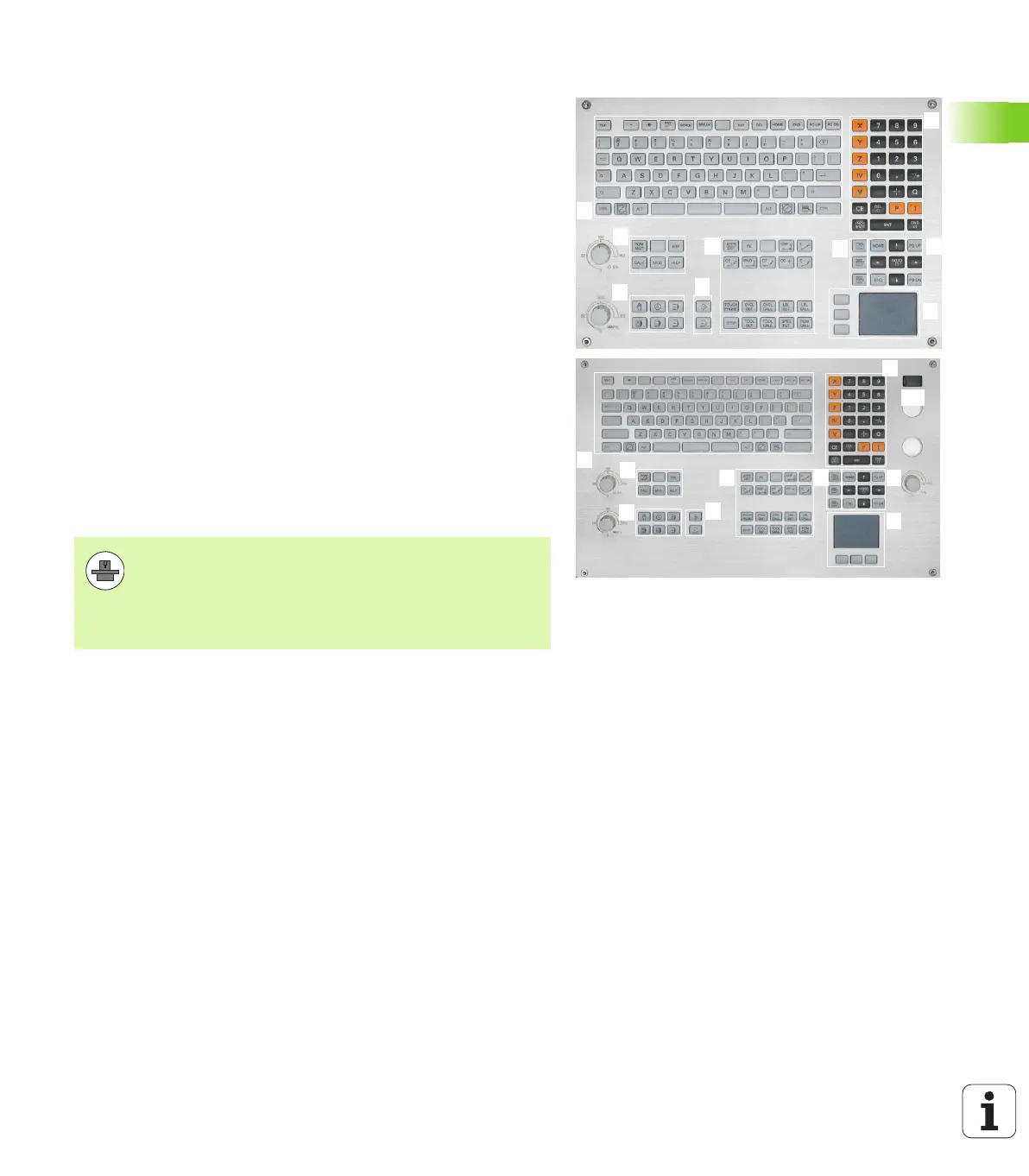

The TNC is available with different operating panels. The figures show
the controls and displays of the TE 730 (15") and TE 740 (19") operating
panels:
The functions of the individual keys are described on the inside front
cover.
1
2
3
5
1
4
6
77
1
79
8
1
2
3
5
1
4
6
77
1
79
8
1
10
1 Alphabetic keyboard for entering texts and file names, and for ISO
programming.
Dual-processor version: Additional keys for Windows operation
2  File management
 Calculator
 MOD function
 HELP function
3 Programming modes
4 Machine operating modes
5 Initiation of programming dialogs
6 Navigation keys and GOTO jump command
7 Numerical input and axis selection
8 Touchpad
9 smarT.NC navigation keys
10 USB connection
Some machine manufacturers do not use the standard
operating panel from HEIDENHAIN. Please refer to your
machine manual in these cases.
Machine panel buttons, e.g. NC START or NC STOP, are
also described in the manual for your machine tool.
