12.3 The PLANE function: Tilting the working plane (software option 1)
12.3 The PLANE function: Tilting the
working plane (software option 1)
Introduction
The PLANE function is a powerful function for defining tilted working
planes in various manners.
All PLANE functions available on the TNC describe the desired working
plane independently of the rotary axes actually present on your
machine. The following possibilities are available:
The machine manufacturer must enable the functions for
tilting the working plane!
All PLANE functions, with the exception of PLANE AXIAL,
require the use of tool axis Z.
You can only use the PLANE function on machines which
have at least two rotary axes (head and/or table).
Exception: PLANE AXIAL can also be used if only a single
rotary axis is present or active on your machine.

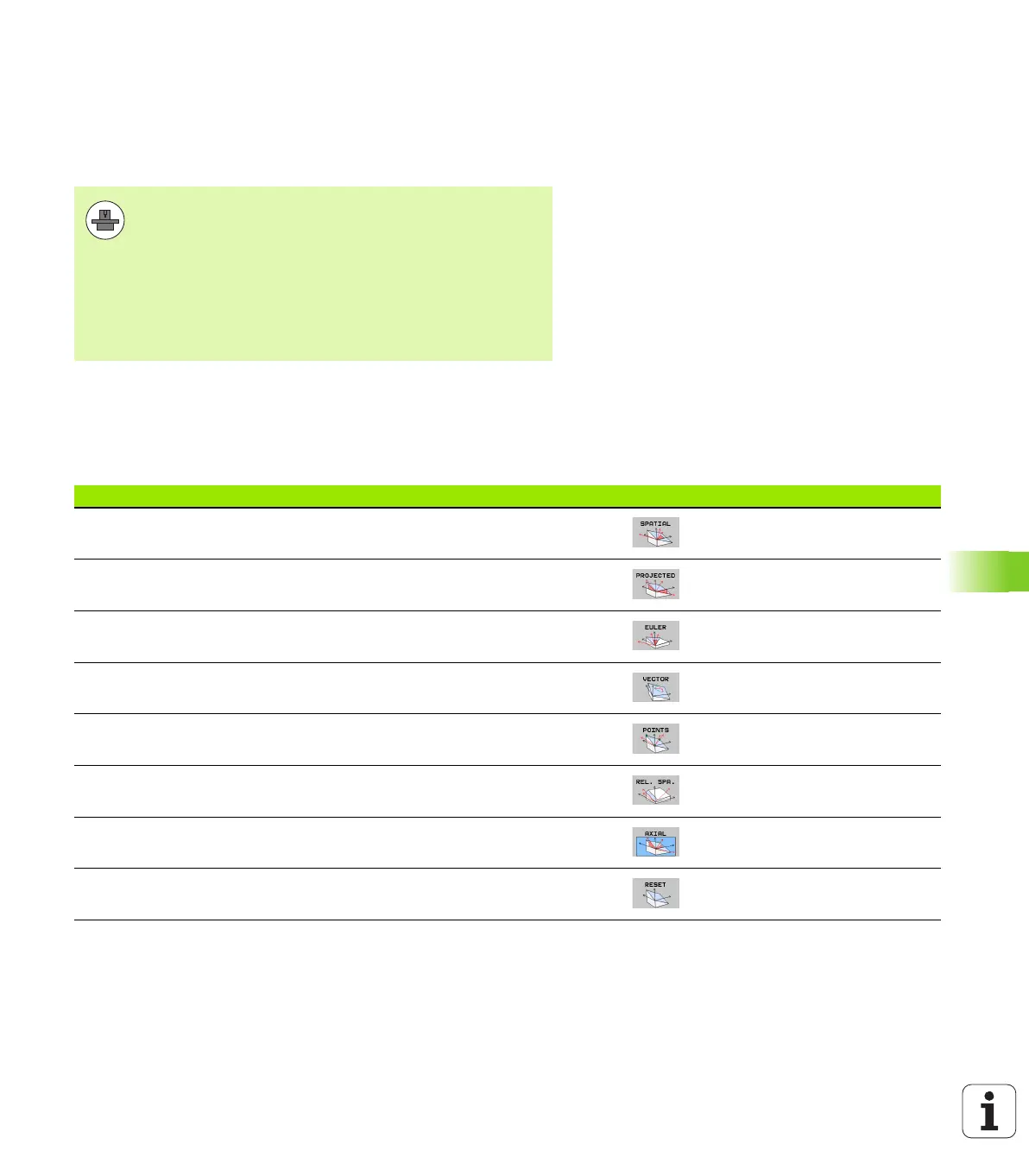

Function Required parameters Soft key Page
SPATIAL Three spatial angles: SPA, SPB, SPC Page 493
PROJECTED Two projection angles: PROPR and PROMIN and a
rotation angle ROT
Page 495
EULER Three Euler angles: precession (EULPR), nutation
(EULNU) and rotation (EULROT)
Page 497
VECTOR Normal vector for defining the plane and base
vector for defining the direction of the tilted X axis
Page 499
POINTS Coordinates of any three points in the plane to be
tilted
Page 501
RELATIVE Single, incrementally effective spatial angle Page 503
AXIAL Up to three absolute or incremental axis angles
A, B, C
Page 504
RESET Resetting the PLANE function Page 492
