14.9 Workpiece presetting with a touch probe

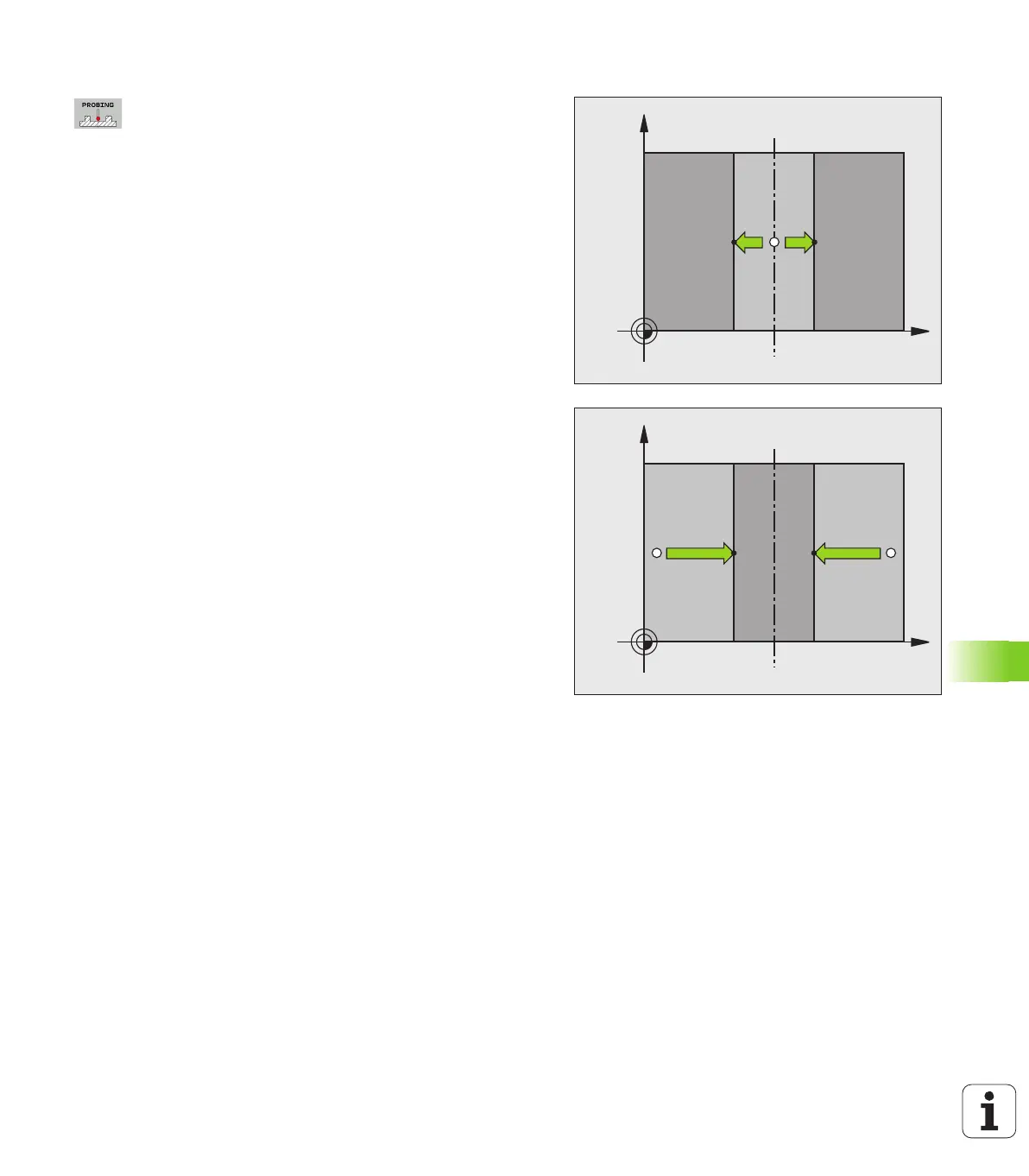

Center line as preset
 Select the probe function: Press the PROBING soft
key
 Position the touch probe at a position near the first
touch point
 Select the probing direction by soft key
 Start the probing procedure: Press the NC Start button
 Position the touch probe at a position near the second
touch point
 Start the probing procedure: Press the NC Start button
 Datum: Enter the coordinate of the datum in the menu
window, confirm with the SET DATUM soft key, or
write the value to a table (see "Writing the measured
values from touch probe cycles to datum tables",
page 597, or see "Writing the measured values from
touch probe cycles in the preset table", page 598, or
see "Storing measured values in the pallet preset
table", page 598)
 To terminate the probe function, press the END key
X
Y
X+X
X
Y
XX+
