290 Programming: Data Transfer from DXF Files or Plain-language Contours
7.2 Data transfer from plain-language programs
7.2 Data transfer from plain-
language programs
Application
Using this function you can take contour sections or complete
contours from existing plain-language programs, especially those
created with CAM systems. The TNC shows the plain-language
dialogs in two-dimensional or three-dimensional form.
It is particularly efficient to use data transfer in conjunction with the
smartWizard, which provides contour editing UNITs for 2-D and 3-D
processing.
Opening plain-language files
Select the Programming and Editing operating mode
Call the file manager
In order to see the soft-key menu for selecting the file
type to be displayed, press theSELECT TYPE soft key
In order to show all plain-language files, press the
SHOW H soft key
Select the directory in which the file is saved
Select the desired H file
Use the CTRL+O key combination to select the Open
with... dialog
Select Open with Converter, confirm with the ENT

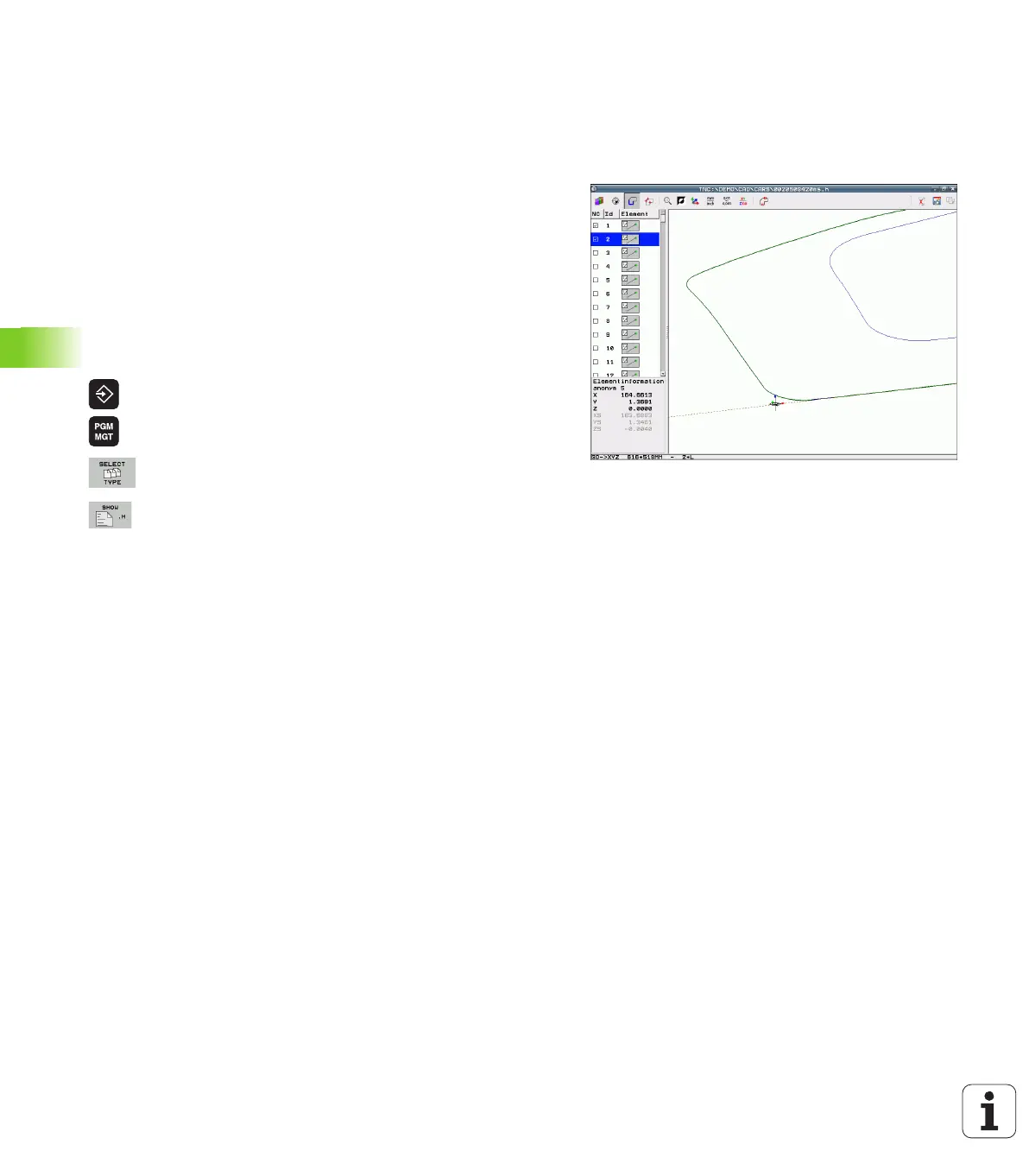

key and the TNC opens the plain-language file and
shows contour elements in graphical form
