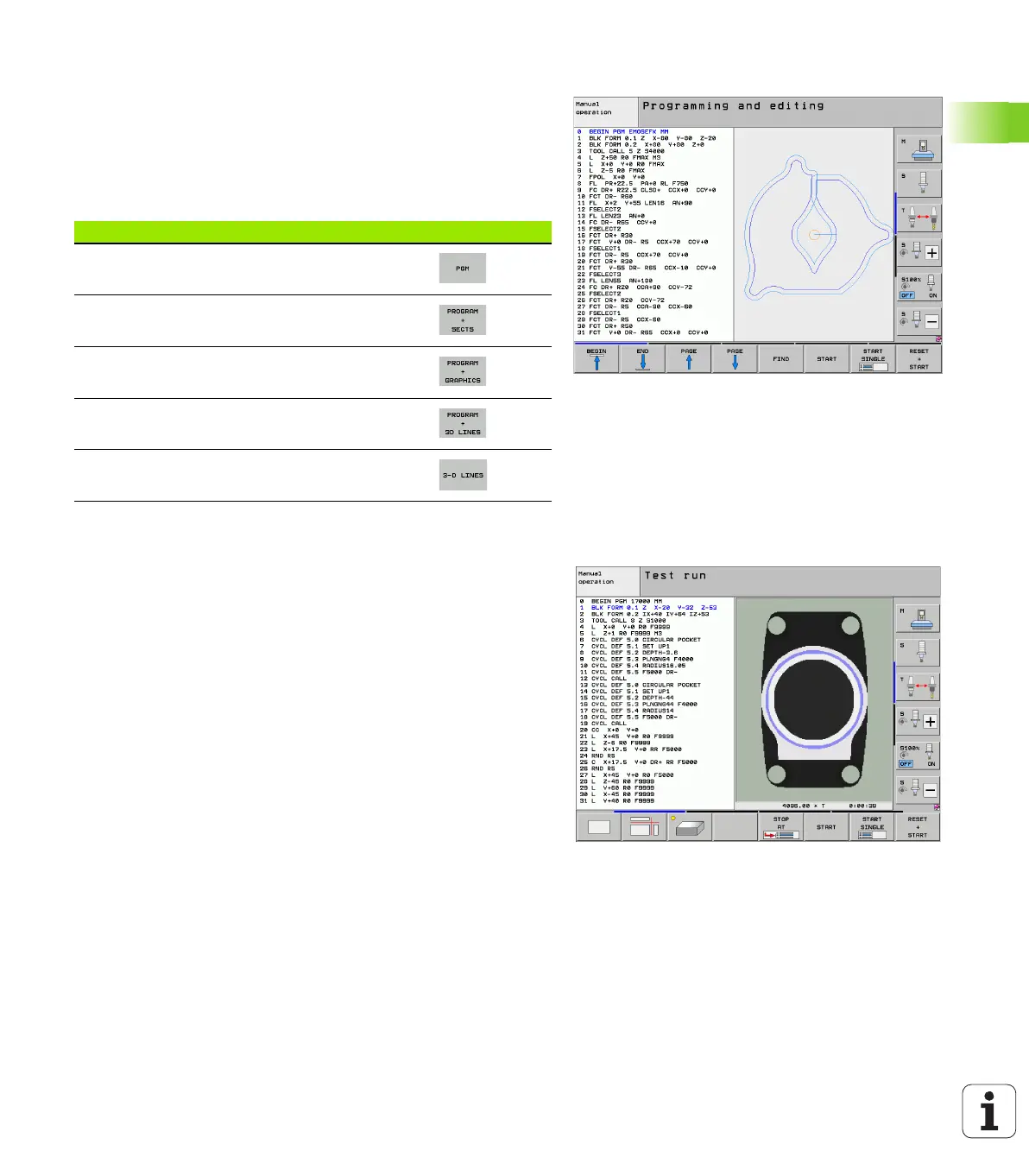

2.3 Operating modes
Programming and Editing
In this mode of operation you can write your part programs. The FK
free programming feature, the various cycles and the Q parameter
functions help you with programming and add necessary information.
If desired, the programming graphics or the 3-D line graphics (FCL 2
function) display the programmed traverse paths.
Soft keys for selecting the screen layout
Test Run
In the Test Run mode of operation, the TNC checks programs and
program sections for errors, such as geometrical incompatibilities,
missing or incorrect data within the program or violations of the
working space. This simulation is supported graphically in different
display modes.
With the dynamic collision monitoring (DCM) software option you can
test the program for potential collisions. As during program run, the
TNC takes into account all permanent machine components defined
by the machine manufacturer as well as all measured fixtures.
Soft keys for selecting the screen layout: see "Program Run, Full
Sequence and Program Run, Single Block", page 84.
Window Soft key
Program
Left: program, right: program structure
Left: program, right: programming graphics
Left: program blocks, right: 3-D line graphics
3-D line graphics
