268 Programming: Programming Contours
6.6 Path contours—FK free contour programming

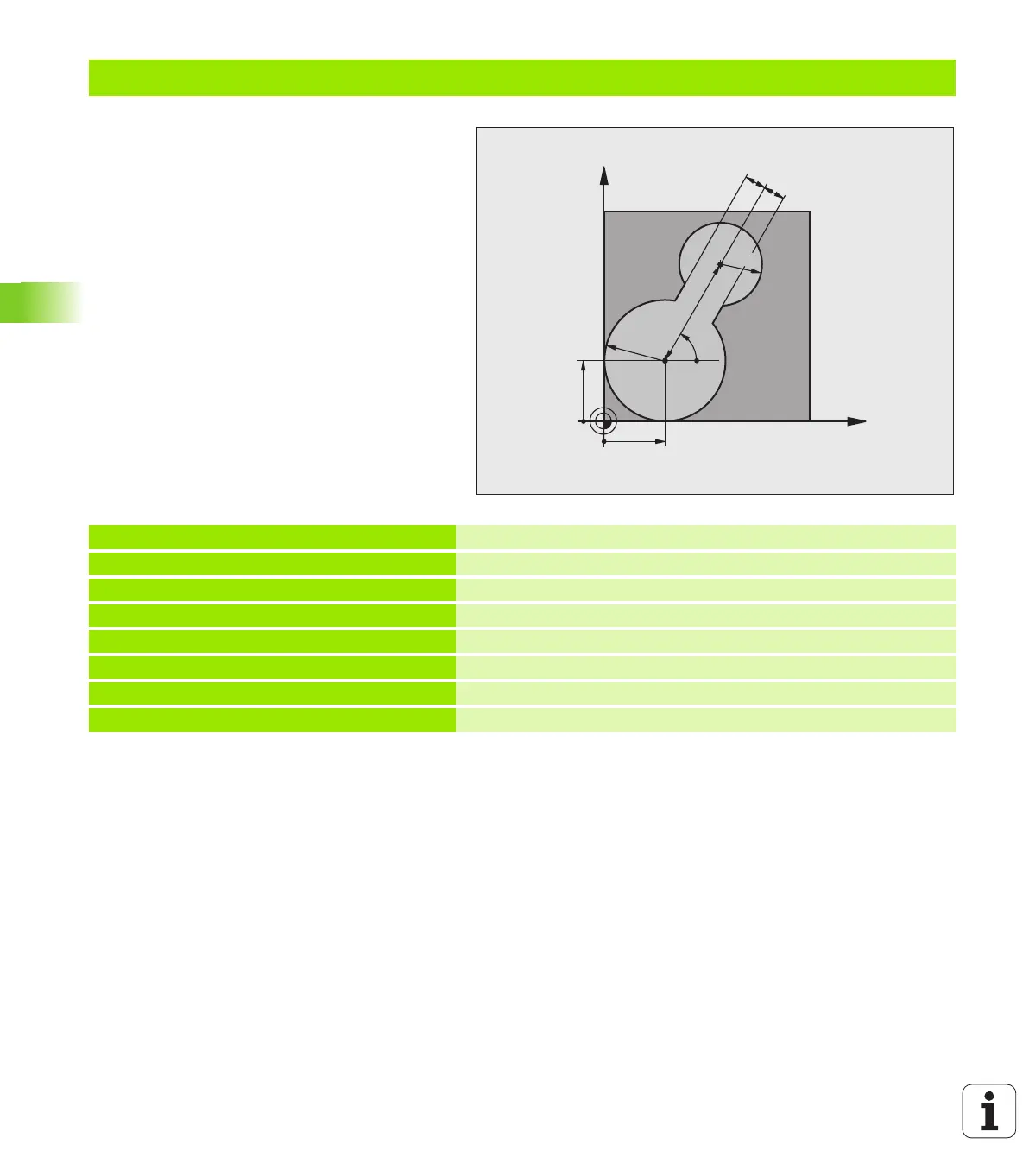

Example: FK programming 2
0 BEGIN PGM FK2 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20 Definition of workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S4000 Tool call
4 L Z+250 R0 FMAX Retract the tool
5 L X+30 Y+30 R0 FMAX Pre-positioning the tool
6 L Z+5 R0 FMAX M3 Pre-position the tool in the tool axis
7 L Z-5 R0 F100 Move to working depth
X
Y
30
30
R30
R20
60°
55
10
10
