270 Programming: Programming Contours

6.6 Path contours—FK free contour programming

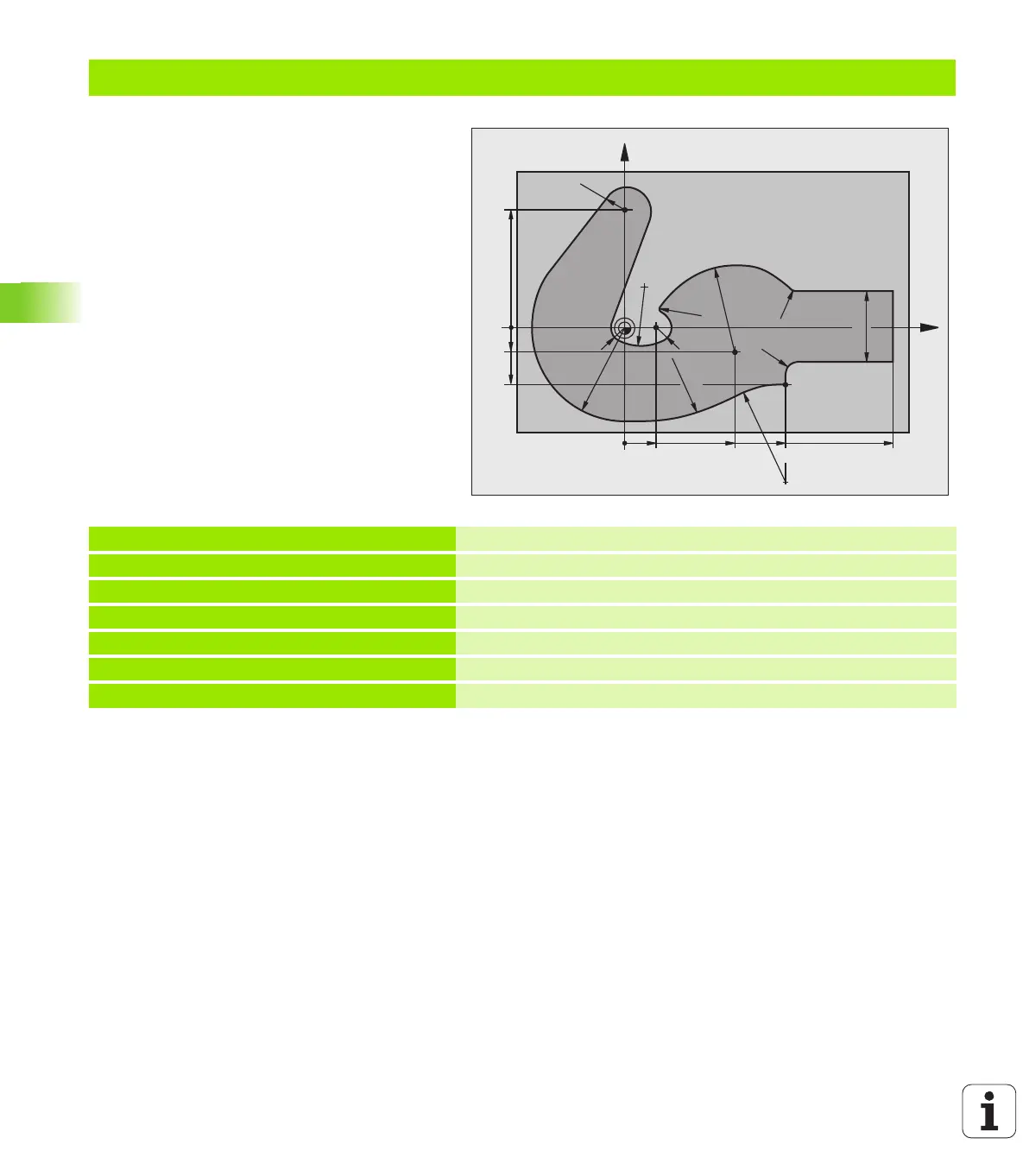

Example: FK programming 3

0 BEGIN PGM FK3 MM

1 BLK FORM 0.1 Z X-45 Y-45 Z-20

Definition of workpiece blank

2 BLK FORM 0.2 X+120 Y+70 Z+0

3 TOOL CALL 1 Z S4500

Tool call

4 L Z+250 R0 FMAX

Retract the tool

5 L X-70 Y+0 R0 FMAX

Pre-positioning the tool

6 L Z-5 R0 F1000 M3

Move to working depth

110

-10

44 65

R10

-25

R40

R24

R1,5

R36

R65

R50
