494 Programming: Execution of CAM Programs, Multi-axis Machining
12.3 The PLANE function: Tilting the working plane (software option 1)
Input parameters

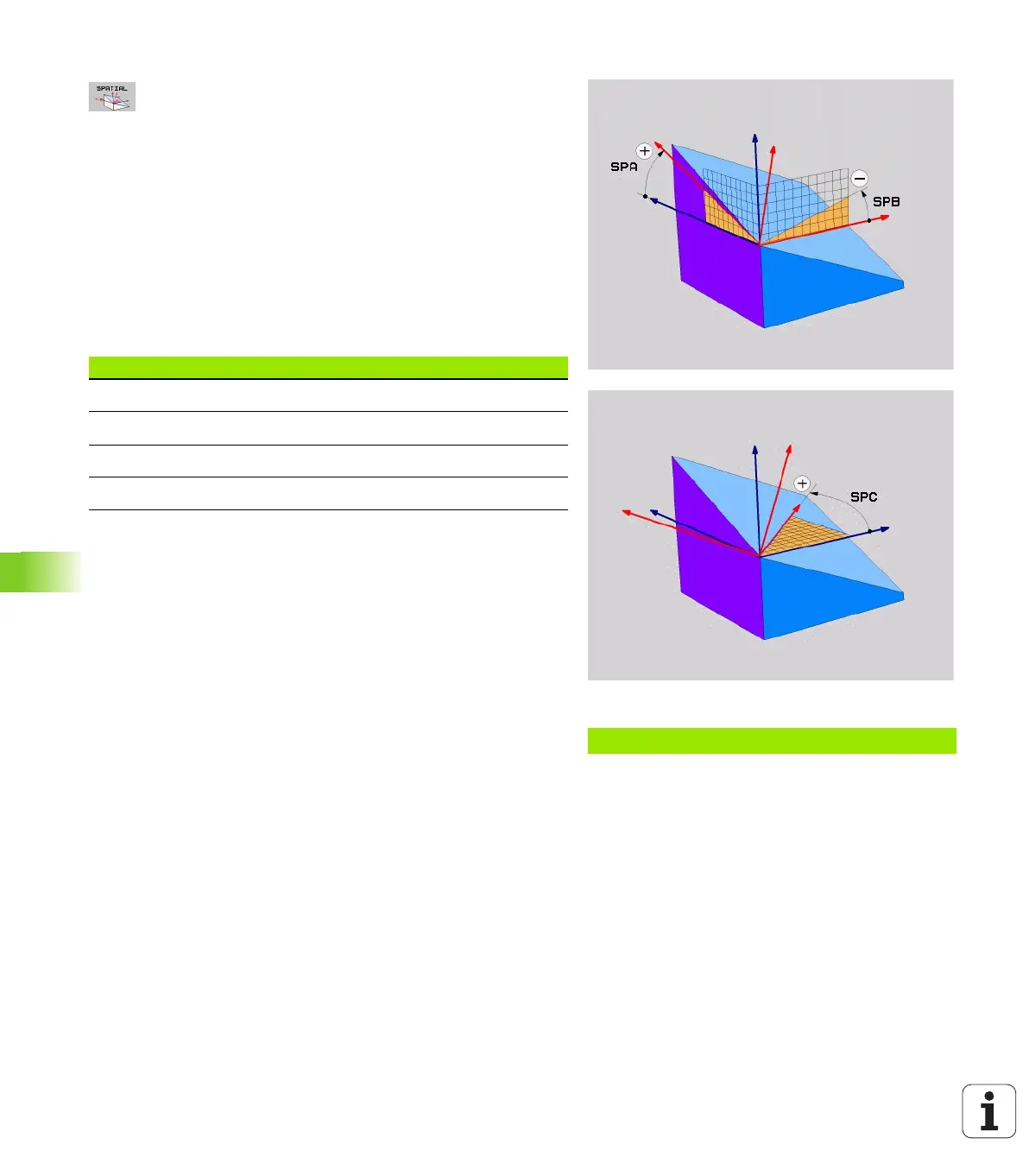

Spatial angle A?: Rotational angle SPA around the
fixed machine axis X (see figure at top right). Input
range from –359.9999° to +359.9999°
Spatial angle B?: Rotational angle SPB around the
fixed machine axis Y (see figure at top right). Input
range from –359.9999° to +359.9999°
Spatial angle C?: Rotational angle SPC around the
fixed machine axis Z (see figure at center right). Input
range from –359.9999° to +359.9999°
Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 506)
Abbreviations used
Beispiel: NC block
5 PLANE SPATIAL SPA+27 SPB+0 SPC+45 .....
Abbreviation Meaning
SPATIAL spatial means in space
SPA spatial A: Rotation around the X axis
SPB spatial B: Rotation around the Y axis
SPC spatial C: Rotation around the Z axis
