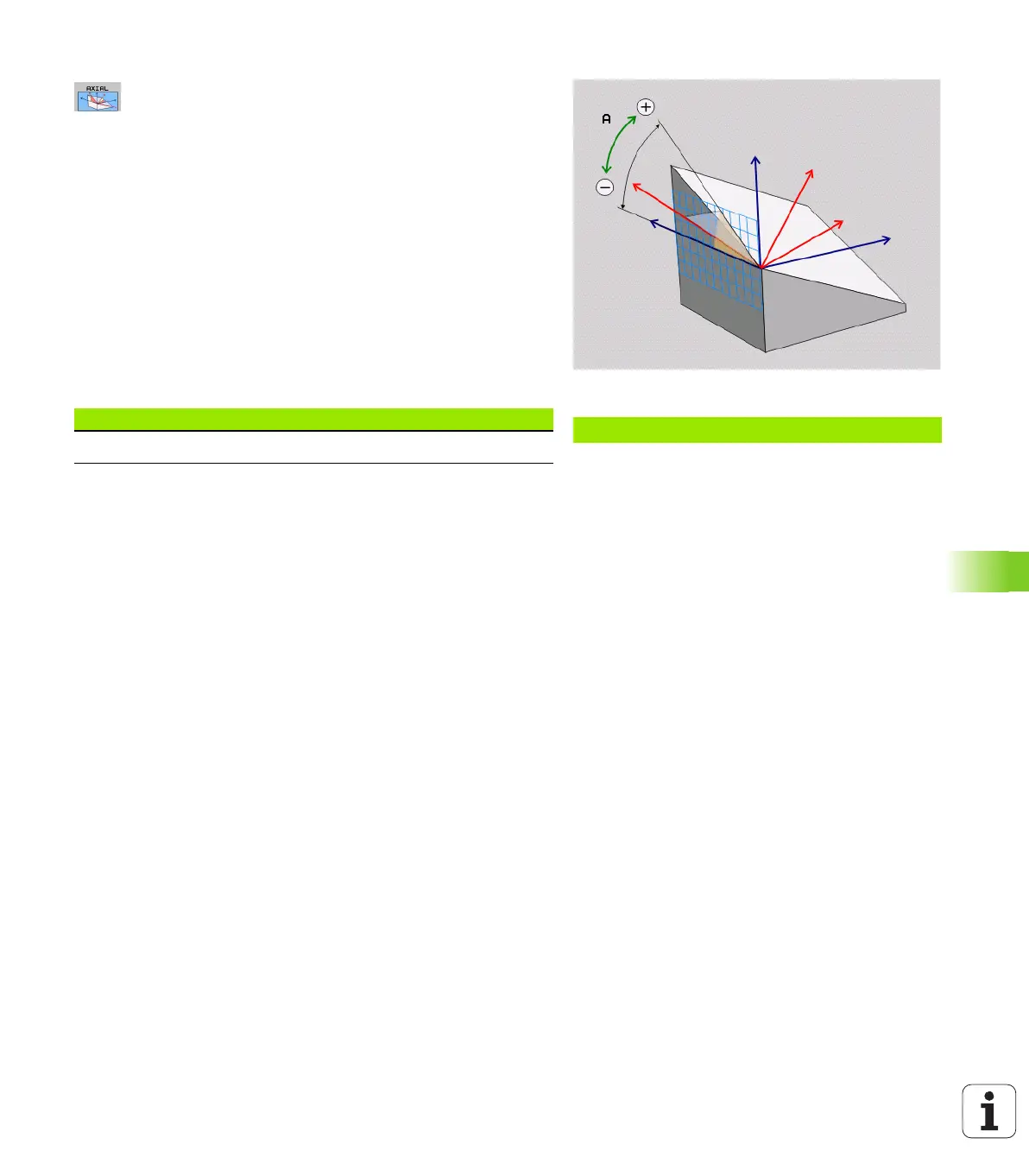

HEIDENHAIN iTNC 530 505
12.3 The PLANE function: Tilting the working plane (software option 1)
Input parameters
Axis angle A?: Axis angle to which the A axis is to be
tilted. If entered incrementally, it is the angle by
which the A axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
Axis angle B?: Axis angle to which the B axis is to be
tilted. If entered incrementally, it is the angle by
which the B axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
Axis angle C?: Axis angle to which the C axis is to be
tilted. If entered incrementally, it is the angle by
which the C axis is to be tilted from its current
position. Input range: –99999.9999° to +99999.9999°
Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 506)
Abbreviations used
Beispiel: NC block
5 PLANE AXIAL B-45 .....
Abbreviation Meaning
AXIAL In the axial direction
