Collage Cell Selection

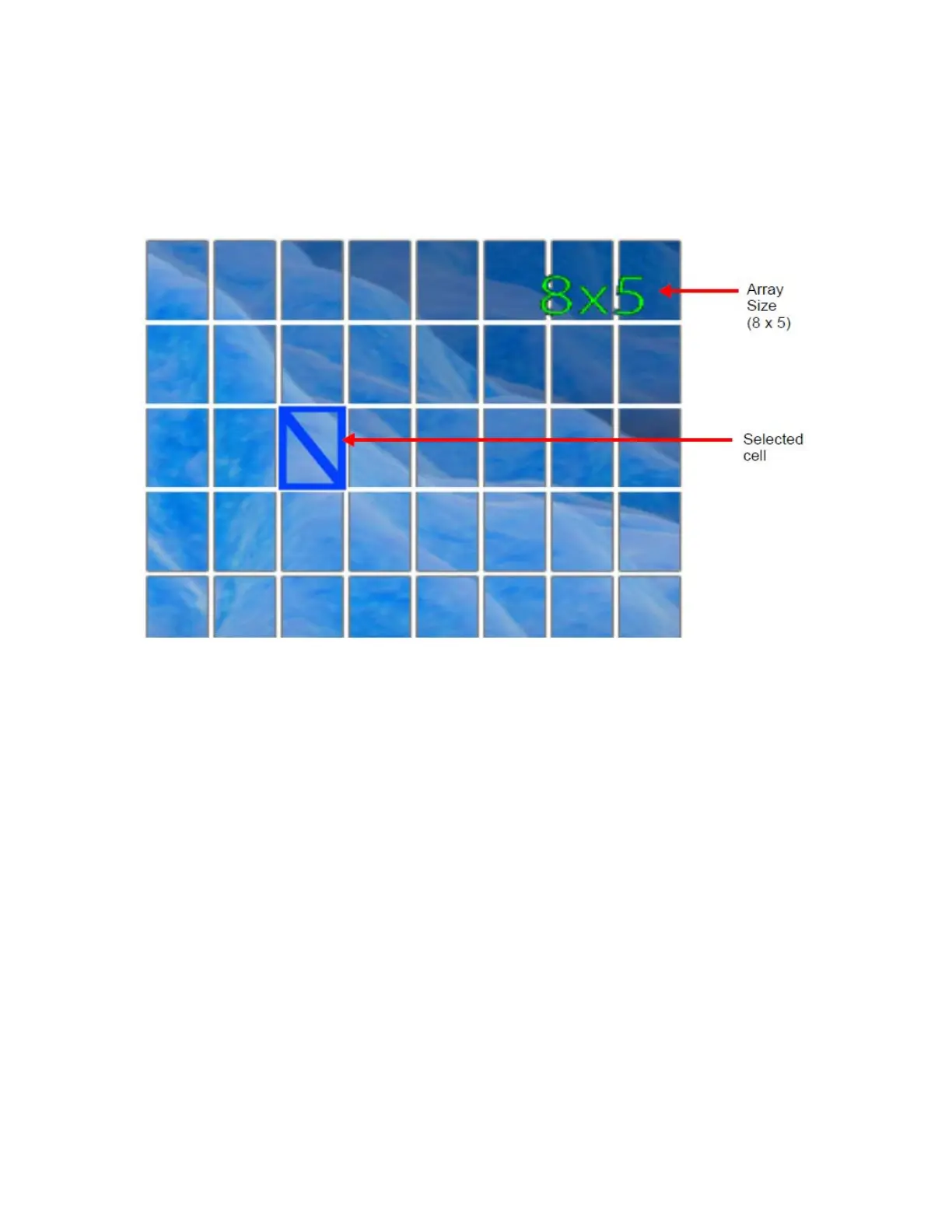

The Collage Cell Selection parameter selects which cell of the grid a particular Axon server or DL fixture will display. DMX
values 0 up to 127 are used to step through grid pattern you selected with the Modifier 1 channel. As you dial through
Modifier 2, the selected cell in the grid is highlighted. DMX values of 128-255 default to the upper left corner of the
grid.
Selecting any value larger then the number of grid rectangles defined by the Collage Config Selection parameter or values
from 128-255 defaults to the top-left rectangular area of the grid.
