MMS100 Software Upgrade

Software Upgrades are completed via the CMA with an attached computer on the same network as the MMS100.

Process outline

• Launch CMA from a network attached computer.

• Choose server to upgrade

• Choose upgrade file

• Start and Allow process to complete, fixture will reboot when finished

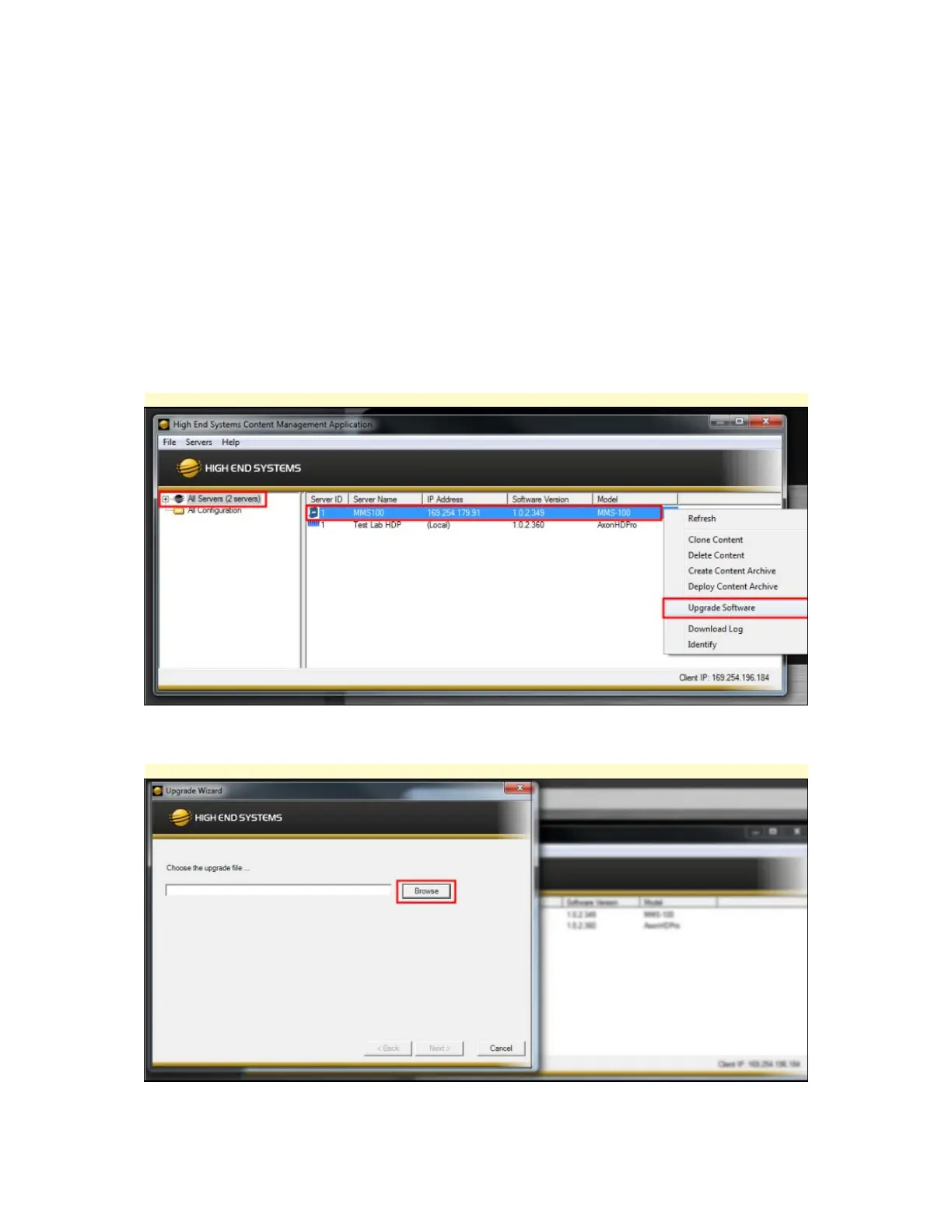

Choose Server to Upgrade, Right Click and Choose Upgrade Software

Choose Browse.
