Collage Edge Blending Curve

Adjustment

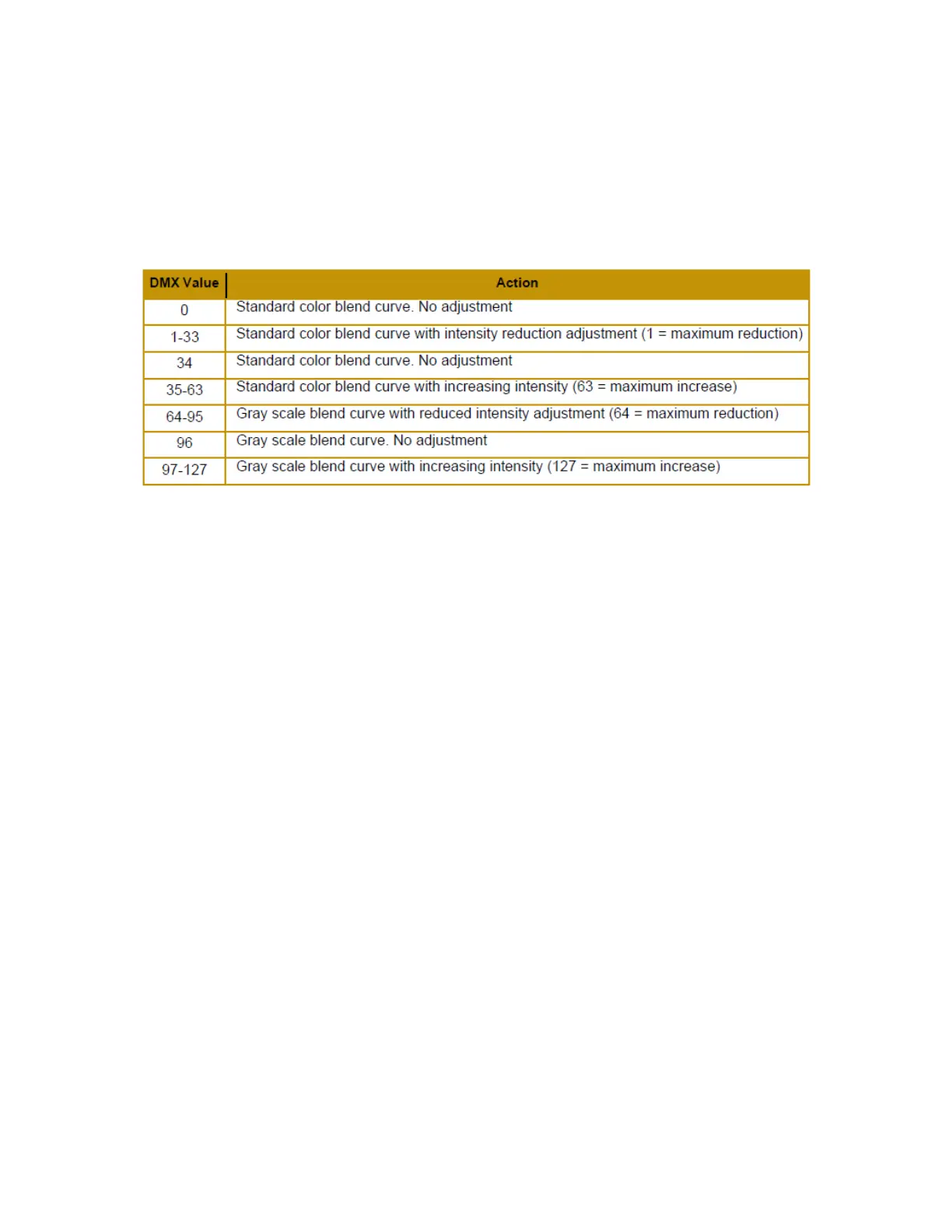

The Collage Blending Adjustment parameter lets you select from a variety of blend curves to control the edge blending of

the adjacent projections.
