Collage Cell Alignment Pattern

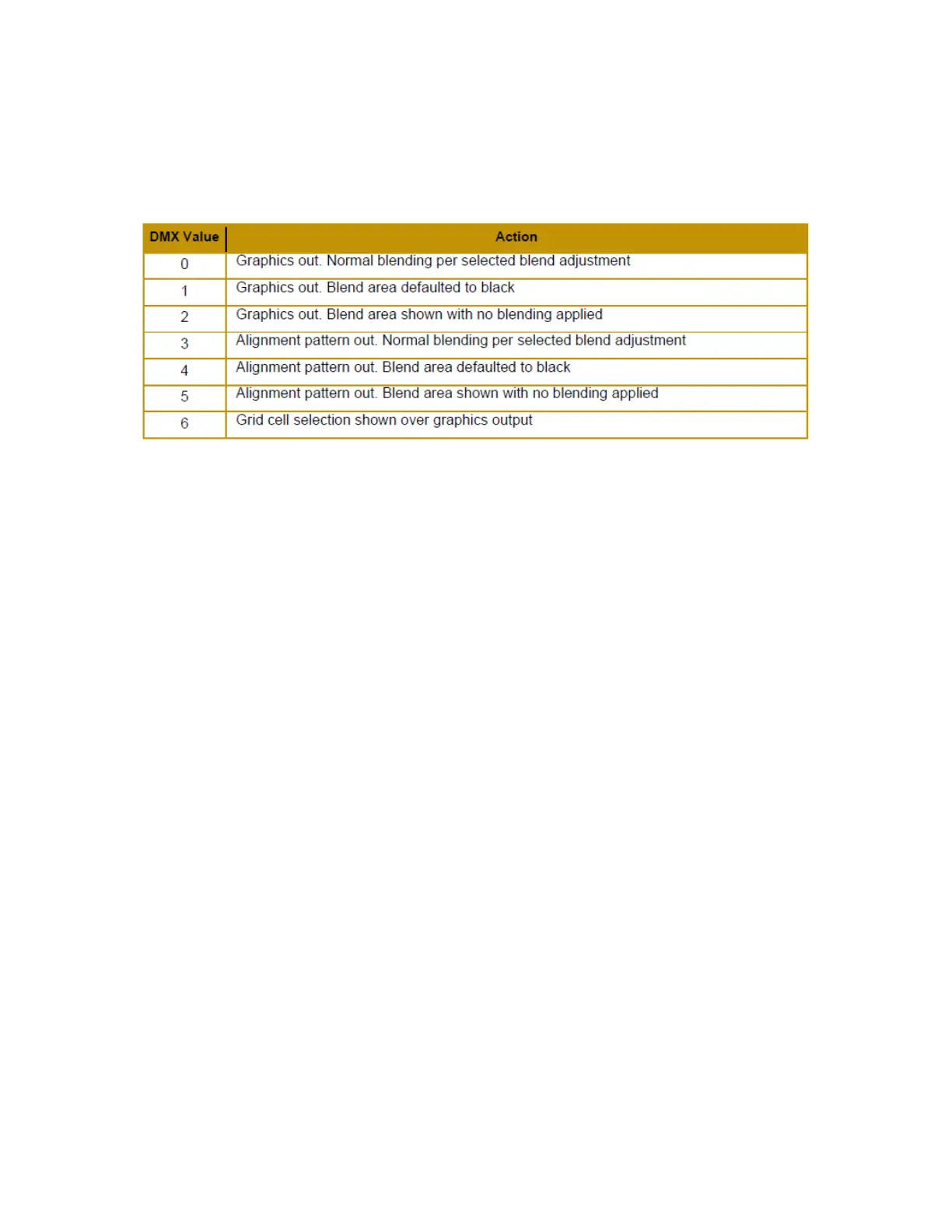

The Adjustment Pattern Control parameter lets you determine how to view the cell as you apply the selected blend

curve. You can also display grid overlays that show your selections for Collage Config and Collage Cell Selection

parameters.
