MMS100 Menu Display

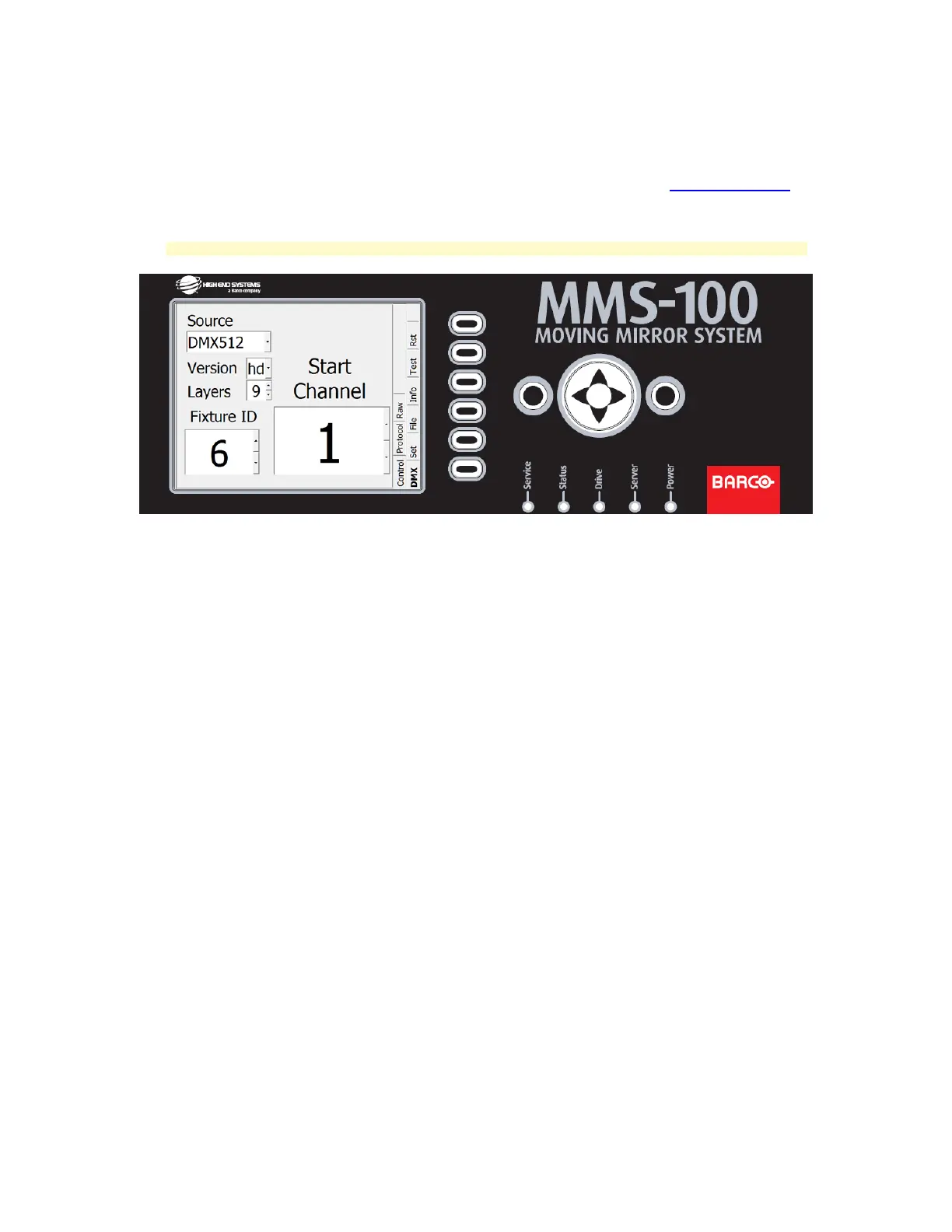

The MMS100 display panel gives access to the fixture’s on board menu system. Please see the Menu System Section for

detailed descriptions of functionality.

Tip:

Most configuration features are also available through the Content Management Application (CMA)
